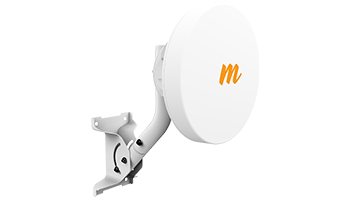

Mimosa B5-Lite KIT AC 750+mbps 2x2 Mimo Point to Point Link

The Mimosa B5-Lite AC is a 750+ Mbps 2x2 Mimo Point to Point Link. The B5-Lite is a low cost, high throughput backhaul radio that uses Mimosa’s TDMA protocol and 802.11ac technology, making it an ideal solution for locations that do not require collocation.

Capable of 750+ Mbps throughput, the B5-Lite can serve less bandwidth hungry areas easily. Offering the same low 2 ms latency as the B5 and a 20 dBi antenna - the B5-Lite strips away a few advanced B5 features to provide you with an alternative low-cost solution.

Mimosa B5-Lite AC  Key Features

    750+ Mbps
    Auto Everything
    Low 2 ms Latency
    802.11ac
    Gigabit Ethernet 10/100/1000-BASE-T Management
    Services Mimosa cloud monitoring and management SNMPv2 & Syslog legacy monitoring HTTPS HTML 5 based Web UI

Wireless interference can change in an instant, and your network needs to adapt. The Mimosa B5-Lite offers constant spectrum analysis with historical and real-time data to dynamically make smarter decisions dynamically. The Auto Everything feature will automatically adjust frequency, channel width and power levels based on environmental feedback. This feature can be turned off for users that prefer more control.
Mimosa B5-Lite - Technical Specifications
Performance

    Max Throughput 750+ Mbps
    Low Latency 2+ ms
    Wireless Protocols Auto-TDD/TDMA

Radio

    MIMO & Modulation 2x2:2 MIMO OFDM up to 256 QAM
    Bandwidth 20/40/80 MHz channels tunable to 5 MHz increments
    Frequency Range 5150-5850 MHz restricted by country of operation (*new* US/FCC 5600-5650 support)
    Max Output Power 20 dBm
    Sensitivity (MCS 0) -87 dBm @ 80 MHz
    -90 dBm @ 40 MHz
    -93 dBm @ 20 MHz

Antenna

    Gain 20 dBi
    Beamwidth ( 3dB ) 14° (azimuth and elevation)
    Cross-Polar Isolation >20 dB
    Polarization Dual 45° slant polarization

Power

    Max Power
    Consumption 15 W
    System Power Method 802.3at compliant
    PoE Power Supply Passive POE compliant, 48-56 V Power over Ethernet supply with IEC61000-4-5 surge protection

Physical

    Dimensions Width: 153.31 mm Diameter: 260.33 mm
    Weight 0.72 Kg
    Enclosure
    Characteristics Outdoor UV stabilized plastic
    Wind Survivability 200 km/h (125 mph)
    Wind Loading 39 kg @ 160 km/h (86 lbs @ 100 mph)
    Mounting Single pole strap feed point integrated into plastic back plate with integrated curvature for contact with mounting poles. Azimuth and Elevation adjustability only provided via J-mount elevation adjustment and hose clamp loosened rotation on the pole.

Environmental

    Operating Temperature -40°C to +55°C (-40°F to 131°F)
    Operating Humidity 5 to 100% condensing
    Operating Altitude 4420 m (14500') maximum
    Shock & Vibration ETS 300-019-2-4 class 4M5

Regulatory + Compliance

    Approvals* FCC Part 15.407and Part 90Y, IC RS10, CE,
    ETSI 301 893/302 502
    RoHS Compliance Yes
    Safety UL/EC/EN/ 60950-1 + CSA-22.2

Low Latency & High Performance

    The Mimosa TDMA protocol establishes a new benchmark for PHY:MAC efficiency, low latency, and spectrum re-use.
    Choose between the highest possible throughput TDMA slot times (which use high packet aggregation techniques), or low latency slot times to support latency-critical vertical applications.

Advanced RF Efficiencies

    Stream Power Peaking- Multi-stream MIMO radios normally settle on the lowest MCS rate across all the streams, severely degrading performance. Mimosa’s backhaul radios constantly advise the remote-side radio of individual stream receive levels, increasing those signal levels to meet the highest common attainable MCS rate.
    Predictive AGC- When there’s a consistent signal from a single client, Mimosa’s Automatic Gain Control narrows the gain window of the receive signal amplitude for the next incoming packets to accelerate packet signal level detection.
    Precision Receive Activation- A technique by which the receiver is precision-activated only when packets are expected to arrive over the link. Thus reducing the potential interference typically seen if a receiver prematurely begins decoding.
