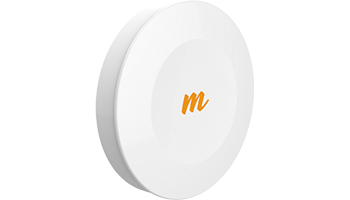

Mimosa B5 Integrated Backhaul 1Gbps Point-to-Point Single Radio

The Mimosa B5 is an Integrated Backhaul Radio that is capable of up to 1.7 Gbps PHY and combines 802.11ac with 4x4:4 MIMO. The B5 features radical engineering to provide the same capacity, speed and reliability as fibre cabling.

The Mimosa B5 is capable of 350 Mbps PHY, uses 2x 20MHz and has a low 2 ms latency and an integrated dual-polarized antenna with 25 dBi of gain. The B5 is operational from 5150-5850 MHz and ready to handle the next wave of 5 GHz.

Mimosa B5 Integrated Backhaul Key Features

    Up to 1.0 Gbps IP (1.7 Gbps PHY )
    Low Latency
    4x4:4 MIMO
    802.11ac
    Small, Lightweight Unit

Dual Link technology from Mimosa improves reliability by load balancing across two non-contiguous channels to avoid outages due to interference. If one channel experiences interference the radio maintains connection while simultaneously searching for new replacement channel. The Mimosa B5 offers constant spectrum analysis with historical and real-time data to dynamically make smarter decisions dynamically. The Auto Everything feature will automatically adjust frequency, channel width and power levels based on environmental feedback. This feature can be turned off for users that prefer more control.
Mimosa B5 Integrated Backhaul Technical Specification
General

    Dimensions 442 x 442 x 362 mm
    Weight 4.9 kg
    Max Throughput Up to 1.0 Gbps IP (1.7 Gbps PHY )
    Low Latency 2+ ms
    Wireless Protocols TDMA
    MIMO & Modulation 4x4:4 MIMO OFDM up to 256QAM
    Bandwidth Single or Dual 20/40/80 MHz channels
    Frequency Range 5150-5850 MHz restricted by country of operation (U-NII 2 US FCC certification pending)
    Max Output Power 30 dBm (2-stream), 27 dBm (4-stream)
    Gain 25 dBi
    Beamwidth ( 3dB ) 8° ( Hpol and Vpol )
    Max Power Consumption 20W
    System Power Method 802.3at compliant
    System Lightning & ESD Protection 6 kV
    PoE Power Supply 56 V Power over Ethernet supply with IEC61000 - 4-5 surge protection
    Enclosure Characteristics Single enclosure with radome, Outdoor UV stabilized plastic, Painted steel bracket plate
    Wind Survivability 200 km/h (125 mph)
    Wind Loading 39 kg @ 160 km/h (86 lbs @ 100 mph)
    Mounting Pole mounting kit included for 30mm (1.18") to 90mm (3.54") OD pipes
    GPS Location GNSS-1 (GPS + GLONASS)
    Security 128-bit AES PSK with hardware acceleration
    Approvals FCC Part 15.407, IC RS10, CE, ETSI 301 893/302 502
    RoHS Compliance Yes
