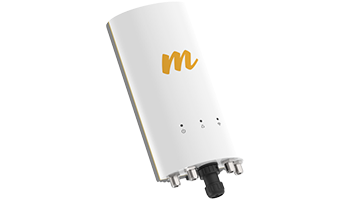

MIMOSA A5C-EF 4.9-6.4 GHz, 802.11ac, 4 port PTMP access point with GPS Sync, connectorized, includes PoE Injector 56V, 100-00037-01
Network specifications
LAN architecture 10Base-T/100Base-TX/1000Base-T
Wi-Fi
Network Drive Form Factor External
Supported GPS data exchange protocols
Device Location External
Supported LAN protocol HTTPS
QoS
SNMPv2
Wi-Fi Band Frequency 5.1-5.8 GHz
Modulation type OFDM
256QAM
WPA2-PSK encryption algorithm
Compatibility with IEEE 802.11a network standards
IEEE 802.11b
IEEE 802.11g
IEEE 802.1X
IEEE 802.11n
IEEE 802.3at
IEEE 802.11ac
Network Features Web Interface
Access Control List
PoE
4x4 MIMO
Power
Power consumption during operation 25 W
Other features
Exterior color White
Degree of protection IP67
Dimensions and weight
Depth 85 mm
Height 300 mm
Width 151 mm
Nominal weight 1.75 kg
Terms of use
Maximum ambient temperature 55 °C
Max. ambient air humidity 100 %
Minimum ambient temperature -40 °C
Min. working air humidity 5 %
Warranty
Warranty products - subject to return Yes
Warranty Validity Criteria Serial Number
Logistics information
Package Weight - Gross (kg) 1 kg
Package Weight - Net (kg) 0 kg
Quantity per pack 1
Retail Packaging Net Weight Carton 0 kg
Retail Packaging Net Weight Plastic 0 kg
Packages in Carton 1
Package type With packaging
