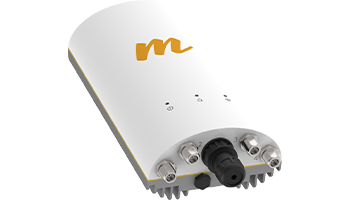

Mimosa A5C 4.9GHz Access Point

With the fastest client speeds and great access point capacity, along with local and network-wide spectrum reuse, the Mimosa A5c delivers the highest possible scale for any unlicensed fixed wireless network. The A5c is well suited for long range pole and tower multipoint applications, Access Point Collocation (GPS Sync) and Municipal and Rural Licensed Public Safety multipoint (4.9 GHz).

Mimosa A5C Key Features

    Gigabit Ethernet: 10/100/1000-BASE-T
    Multi-User MIMO**: Device leverages beamforming to transmit to multiple clients simultaneously
    Synchronization**: GPS+GLONASS allows for network-wide sync and interference avoidance
    Collocation**: 1PPS GPS Tx/Rx synchronization for same tower collocation and channel reuse
    Network Processing: Advanced AP control for capacity and subscriber management
    Management Services: Mimosa cloud monitoring and management SNMPv2** & Syslog legacy monitoring HTTPS, HTML 5-based Web UI, 2.4 GHz 802.11b/g/n radio for local management access
    Smart Spectrum Management: Active scan monitors/logs ongoing RF interference across channels (no service impact), Dynamic autooptimization of channel and bandwidth use
    Security: WPA2 + Mimosa 802.1x RADIUS Management VLAN support
    QoS: Supports 4 pre-configured QoS levels
    GPS Location: GNSS1 (GPS + GLONASS)
    Traffic Shaping: Per CPE UL/DL commit and maximum rate shaping
    Access Control List: Permit, Deny and Remark Layer 2 and Layer 3 traffic flows

Increased Capacity at Each Site
With integrated high precision GPS Sync technology, new A5c sectors can easily be added at existing Mimosa A5 and B5 sites and reuse the same channel. This saves valuable, scarce unlicensed spectrum resources when new A5c devices are installed “back-to-back” on the same tower or pole.

Ultra High Client Capacity
TDMA techniques provide significant improvements when scaling the number of clients. By dynamically allocating timeslots and supporting Multi-User MIMO in the downstream direction and allocating upstream timeslots upon client request, network scale, spectrum efficiency and access point utilization are optimized to the highest degree possible.

Network Scalability Perfected
Every deployed device is collaboratively synchronized across the network. This allows easy channel reuse to save valuable spectrum network wide. Connected to Mimosa Cloud, deployment of the A5c is incredibly simple with network spectrum use and performance optimized across all of your deployed devices.

Fiber Speeds
With client speeds capable of 500 Mbps+ and access point capacity up to 1.5 Gbps, the A5 delivers the speeds consumers and business users demand at a fraction of the cost of delivering Fiber to the Premises.

Add Subscribers with Ease
Install, aim and go! We’ve eliminated manual installation and pre-provisioning complexity so you can focus on adding subscribers quickly!
Mimosa A5C - Technical Specifications
Performance

    Max Throughput: Up to 1.0 Gbps IP (1.7 Gbps PHY)
    Client Capacity: 100 Clients
    Wireless Protocols: WiFi Interop Mimosa GPS Sync (TDMA)**

Radio

    MIMO & Modulation: 4x4:4 MIMO OFDM up to 256-QAM
    Bandwidth*: 20/40/80 MHz channels tunable in 5 MHz increments for GPS Sync; Tunable to standard WiFi channels for WiFi Interop
    Frequency Range: 4900 - 6200 MHz restricted by country of operation (‘new’ US/FCC 5600-5650 support)
    Max Output Power: 30 dBm
    Sensitivity (MCS 0):
    -87 dBm @ 80 MHz
    -90 dBm @ 40 MHz
    -93 dBm @ 20 MHz

Physical

    Dimensions:
    Height: 300 mm (11.81”)
    Width: 151 mm (12.40”)
    Depth: 85 mm (3.35”)
    Weight: 1.75 kg (3.86 lbs)
    Enclosure Characteristics: Outdoor UVstabilized engineered polymer with integrated mounting panel
    Mounting: Dual pole strap mount and slip on mount for comparable antenna
    Connector Type: Female Type N (x4)

Environmental

    Outdoor Ingress Protection Rating: IP67
    Operating Temperature: -40°C to +55°C (-40°F to 131°F)
    Operating Humidity: 5 to 100% condensing
    Operating Altitude: 4,420 m (14,500’) maximum
    Shock & Vibration: ETS 300-019-2-4 class 4M5

Regulatory + Compliance

    Approvals: FCC Part 15.407 and Part 90Y, IC RSS210, CE, ETSI 301 893/302 502
    RoHS Compliance: Yes
    Safety: UL/EC/EN/ 60950-1 + CSA-22.2
