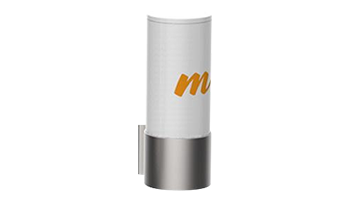

Mimosa A5-360 Omni Access Point - 14dBi

The Mimosa A5-360 is a 14dBi access point with super high capacity of up to 250+ clients, along with advanced interference reduction techniques to enable service in high-density markets where wireless may never have worked before.

Mimosa A5-360 - 14 dBi Key Features

    14 dBi Omni Antenna
    Multi-User MIMO
    Wi-Fi and TDMA
    4x4:4 802.11ac

In 5 GHz, the radio can be configured to either run traditional Wi-Fi or TDMA for fixed access mode. The A5 antenna has been optimized for long-distance transmission and can further improve performance by using the TDMA protocol. For additional enhancement, client request-based adaptable timeslots manage upstream scheduling, to minimize wasted slots. The Mimosa A5-360 also has integrated GPS + GLONASS for incredible network efficiency and spectrum re-use.

Mimosa A5-360 - 14dBi - Technical Specifications
Performance

    Max Throughput Up to 1.0 Gbps IP (1.7 Gbps PHY)
    Client Capacity 256+ Clients
    Low Latency 8 ms
    Wireless Protocols Wi-Fi (RTS/CTS)
    Mimosa Flexible TDMA

Radio

    MIMO & Modulation 4x4:4 MIMO OFDM up to 256-QAM
    Bandwidth 20/40/80 MHz channels tunable in 5 MHz increments
    Frequency Range 4900-6000 MHz restricted by country of operation (*new* US/FCC 5600-5650 support)
    Max Output Power 30 dBm
    Sensitivity (MCS 0) -87 dBm @ 80 MHz
    -90 dBm @ 40 MHz
    -93 dBm @ 20 MHz

Antenna

    Gain 14 dBi (net of losses into each of four sector panels)
    Beamwidth ( 3dB ) 70º azimuth
    Front-to-Back Ratio >30 dB
    Cross-Polar Isolation >20 dB or better
    Polarization 4 Panels, Alternating Circular Polarization

Power

    Max Power
    Consumption 25 W
    System Power Method 802.3at compliant
    System Lightning &
    ESD Protection 6 kV
    PoE Power Supply Passive PoE compliant, 48-56 V Power over Ethernet supply with IEC61000-4-5 surge protection

Physical

    Dimensions Height: 321 mm Length: 142 mm
    Enclosure Characteristics Outdoor UV-stabilized engineered polymer
    Wind Survivability 200 km/h (125 mph)
    Wind Loading 39 kg @ 160 km/h (86 lbs @ 100 mph)
    Mounting Dual pole strap feed points integrated into metal base with integrated curvature for contact with mounting poles.

Environmental

    Outdoor Ingress
    Protection Rating IP67
    Operating Temperature -40°C to +55°C (-40°F to 131°F)
    Operating Humidity 5 to 100% condensing
    Operating Altitude 4420 m (14500') maximum
    Shock & Vibration ETS 300-019-2-4 class 4M5

Features

    Gigabit Ethernet 10/100/1000BASE-T
    MU MIMO Device leverages directionality to transmit to multiple clients simultaneously
    Synchronization GPS + GLONASS allows for network-wide sync and interference avoidance
    TDMA Mode Optional TDMA protocol for increased network efficiency
    Network Processing Advanced AP control for capacity and subscriber management
    Auto Everything Automatic control of bandwidth, power and channel for optimal network performance
    Management Services Mimosa cloud monitoring and management SNMPv2 & Syslog legacy monitoring HTTPS HTML5-based Web UI
    2.4 GHz 802.11b/g/n radio for local management access
    Smart Spectrum
    Management Active scan monitors/logs ongoing RF interference across channels (no service impact)
    Dynamic auto-optimization of channel and bandwidth use
    Security WPA2 + Mimosa 802.1x RADIUS
    Future support of cWPA2-Enterprise/HotSpot 2.0
    Management VLAN support
    QoS Supports 4 pre-configured QoS levels
    GPS Location GNSS-1 (GPS + GLONASS)

Regulatory + Compliance

    Approvals* FCC Part 15.407 and Part 90Y, IC RS10, CE,
    ETSI 301 893/302 502
    RoHS Compliance Yes
    Safety UL/EC/EN/ 60950-1 + CSA-22.2
    *Anticipated by product shipment
