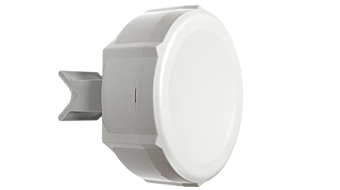

The new High Gain version of our popular SXT G 802.11a/n/ac model, equipped with an improved 5GHz 17dBi 24 degree antenna, Gigabit Ethernet port and RouterOS L4 license.
Like all our SXT units, this is a neat and compact outdoor device that comes with all necessary accessories included. Use it as a wireless AP, for point to point, or as a CPE unit. 802.11ac technology provides data rates up to 866Mbit, but is also backwards compatible with 802.11a/n.
The SXT HG supports 10-57V 802.3af/at and passive PoE power input.
Specifications
Details
Product code RBSXTG-5HPacD-HG
Architecture MIPSBE
CPU QCA9557
CPU core count 1
CPU nominal frequency 720 MHz
Dimensions 140x140x105mm. Weight without packaging, adapters and cables: 265g
License level 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -40 C .. +70 °C
Powering
Details
PoE in 802.3af/at
PoE in input Voltage 12-57 V
Number of DC inputs 1 (PoE-IN)
Max power consumption 12 W
Max power consumption without attachments 12W
Wireless
Details
AC speed AC1200
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 17
Wireless 5 GHz chip model QCA9892
Wireless 5 GHz generation Wi-Fi 5
Ethernet
Details
10/100/1000 Ethernet ports 1
Peripherals
Details
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1
Other
Details
PCB temperature monitor Yes
Voltage Monitor Yes
Certification & Approvals
Details
Certification FCC
Wireless specifications
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 31 -96
54MBit/s 28 -81
MCS0 30 -96
MCS7 27 -77
MCS9 22 -72
