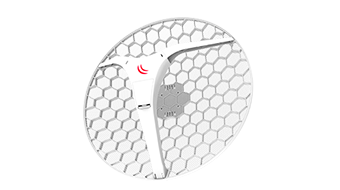

The LHG is a compact and light 5GHz 802.11 a/n wireless device with an integrated dual polarization 24.5 dBi grid antenna. LHG HP5 comes with two times more output power than our regular LHG 5, and is designed to reach up to 60% longer distances.
The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.
Specifications
Details
Product code RBLHG-5HPnD
Architecture MIPSBE
CPU AR9344
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions Ø 391 x 222 mm;
License level 3
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40°C to 70°C
Powering
Details
PoE in Passive PoE
PoE in input Voltage 10-28 V
Number of DC inputs 1 (PoE-IN)
Max power consumption 7 W
Wireless
Details
Wireless 5 GHz Max data rate 300 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n
Antenna gain dBi for 5 GHz 24.5
Wireless 5 GHz chip model AR9344
Wireless 5 GHz generation Wi-Fi 4
Ethernet
Details
10/100 Ethernet ports 1
Certification & Approvals
Details
Certification CE/RED, FCC, IC, EAC, ROHS
Wireless specifications
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 28 -96
54MBit/s 25 -80
MCS0 28 -96
MCS7 24 -75
