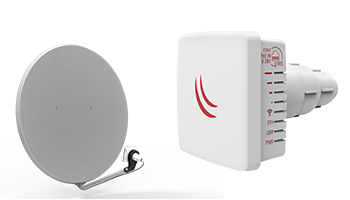

Mikrotik RBLDF-5ND LDF 5Dual chain 5GHz system for long distance links with satellite offset dish

37.90 €
Συμπεριλαμβάνεται Φ.Π.Α. 20%
χωρίς τα έξοδα αποστολής

Κωδικός: 26198

Βάρος: 0.500 kg
Σε απόθεμα

Τεχνικά Στοιχεία Βασικά Στοιχεία Αξιολόγηση

LDF 5 Dual chain 5GHz system for long distance links with satellite offset dish antennas

The LDF (Lite Dish Feed) is an outdoor wireless system with a built in antenna, meant to be installed on satellite offset dish antennas. The dish will act as a reflector, amplifying the signal.

This means you can use any available satellite TV dish with an offset mount to quickly deploy powerful long range wireless links. The offset mount is universal at 40mm diameter, and the LDF can easily be placed inside it. Since the LDF itself is a tiny little package, it makes shipping and deployment simple and low cost.

Using a dish of up to 100cm in diameter, it is possible to obtain antenna amplification of up to 33dBi. The device comes preinstalled with RouterOS and is ready to use.

Specifications

Details
Product code	RBLDF-5nD
Architecture	MIPSBE
CPU	AR9344
CPU core count	1
CPU nominal frequency	600 MHz
Dimensions	84x84x115mm
License level	3
Operating System	RouterOS
Size of RAM	64 MB
Storage size	16 MB
Storage type	FLASH
Tested ambient temperature	-40°C .. +70°C

Powering

Details
Max Power consumption	6W
PoE in	Passive PoE
PoE in input Voltage	10-30 V
Number of DC inputs	1 (PoE-IN)

Wireless

Details
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11a/n
Antenna gain dBi for 5 GHz	9
Wireless 5 GHz chip model	AR9344

Ethernet

Details
10/100 Ethernet ports	1

Wireless specifications

5 GHz	Transmit (dBm)	Receive Sensitivity
6MBit/s	25	-96
54MBit/s	20	-80
MCS0	25	-96
MCS7	19	-75

Τιμή Μονάδος: 37.90 €
Κατασκευαστής: MikroTik
Βάρος: 0.500 kg
