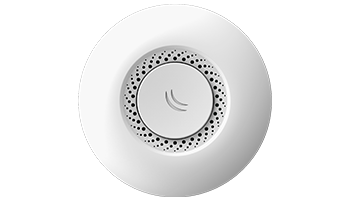

The RouterBOARD cAP 2nD (ceiling Access Point) is our first 2.4GHz Dual-Chain ceiling AP. Inconspicuously designed, it blends into the environment, perfect for hospitality business like hotels, airports, shopping malls etc.



cAP 2nD supports 802.11b/g/n and can be powered by PoE. It’s a perfect companion for the MikroTik CAPsMAN (controlled AP system manager), allowing you to control all your AP devices from one central location.



Unlike traditional controller software, which requires a separate PC/Mac to run, our CAPsMAN runs on any existing RouterBOARD device in your network. No need for a separate controller machine.



Everything is included to get you started, wall/ceiling mount, PoE injector, power adapter and even the screws and screw anchors.







Product specifications

Details

Product code    RBcAP2nD

CPU nominal frequency    650 MHz

CPU core count    1

Size of RAM    64 MB

10/100 Ethernet ports    1

Wireless standards    802.11b/g/n

Wireless chip model    QCA9533

Supported input voltage    11 V – 57 V

PoE in    802.3af/at

Dimensions    185mm diameter, 31mm heigh

Operating System    RouterOS

Tested ambient temperature    -30C to +70C

License level    4

Antenna gain DBI    2

CPU    QCA9533

Max Power consumption    4W

Number of chains    2

Storage type    FLASH

Storage size    16 MB
