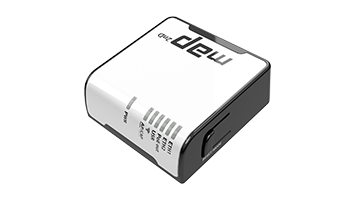

MicroTik RBMAP2ND mAP Dual-Chain 2.4GHz micro AP, 650MHz CPU, 64MB RAM, 2xEthernet, PoE out

44.90 €
Συμπεριλαμβάνεται Φ.Π.Α. 20%
χωρίς τα έξοδα αποστολής

Κωδικός: 26205

Βάρος: 0.300 kg
Σε απόθεμα

Τεχνικά Στοιχεία Βασικά Στοιχεία Αξιολόγηση

mAP Dual-Chain 2.4GHz micro AP, 650MHz CPU, 64MB RAM, 2xEthernet, PoE out

The mAP (micro Access Point) is a tiny size wireless Dual-Chain 2.4GHz Access Point with full RouterOS capabilities. It is very portable, since it accepts power from a wide variety of sources - USB, Passive PoE and power jack. It also works as a PoE injector - the second Ethernet port provides up to 500mA of power to another device, for example, you can connect a SXT CPE device to it.

Specifications

Details
Product code	RBmAP2nD
Architecture	MIPSBE
CPU	QCA9531
CPU core count	1
CPU nominal frequency	650 MHz
Dimensions	68x68x19mm
License level	4
Operating System	RouterOS
Size of RAM	64 MB
Storage size	16 MB
Storage type	FLASH
Tested ambient temperature	-10C to +70C tested

Powering

Details
Max Power consumption	5W
MicroUSB input Voltage	5-5 V
PoE in	802.3af/at
PoE out	Passive PoE
PoE in input Voltage	12-57 V
Number of DC inputs	3 (DC jack, MicroUSB, PoE-IN)
DC jack input Voltage	8-57 V

Wireless

Details
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	1.2
Wireless 2.4 GHz chip model	QCA9531

Ethernet

Details
10/100 Ethernet ports	2

Peripherals

Details
Number of USB ports	1
USB Power Reset	Yes
USB slot type	microUSB type AB
Max USB current (A)	1

Other

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes

Wireless specifications

2.4 GHz	Transmit (dBm)	Receive Sensitivity
1MBit/s	22	-96
11MBit/s	22	-89
6MBit/s	20	-93
54MBit/s	18	-74
MCS0	20	-93
MCS7	16	-71

Τιμή Μονάδος: 44.90 €
Κατασκευαστής: MikroTik
Βάρος: 0.300 kg
