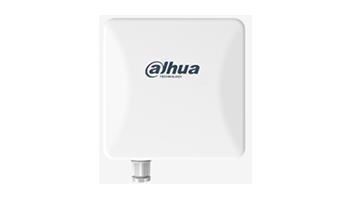

DAHUA PFWB5-10n 5GHz N300 20dBi Outdoor Wireless CPE



> Integrated 5 GHz (2x2) MIMO radio

> Frequency 5.150 - 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)

> High performance and stability

> IP-66 standards rated enclosure

> Improved noise immunity

> TDMA ensures reliable communication

> Powerful OS

> Dual firmware

> Built-in tools including Site Survey, Link Test, Antenna Alignment, Spectrum Analyzer, Ping & Trace help in configuration and debugging

> Recommended for 0~5km PTP/PTMP wireless connection(as a station in PTMP link)



Mini 5.8GHz access point, 802.11a / n MIMO 2x2 wireless waterproof Access Point / NetworkBridge Router IPv4, Router IPv6. Operating modes: AP WDS, AP TDMA, Station WDS TDMA, Station ARP NAT. Dual Firmware. Built-in 20dBi directional antenna 10o horizontal angle, 10o vertical coverage angle. Maximum Range 5km / 7km. Maximum connection speed 300Mbps. Frequency range: 5.150 - 5.850MHz. OFDM modulation. Channel: 5/10/20 / 40MHz. Output power: 29dBm. Sensitivity ‐97dBm. Up to 64 customers. LAN port: 1x 10 / 100BASE ‐ TX, auto ‐ MDI / MDIX. Security: WPA / WPA2 / WACL. WAN: Static IP, DHCP client, PPPoE client. Management & Services: DHCP server, SNMP server, NTP client, ping watchdog, HTTP (S) GUI, SSH, SNMP read, Telnet. Tools: Site survey, link test, antenna alignment. Built-in lightning protection. Power supply: Passive PoE 12‐24VDC / 4.5W (adapter and injector included). Suitable for outdoor installation, IP66. Dimensions: 185x185x81mm. Industrial design with operating temperature: ‐30oC ~ 70oC.
