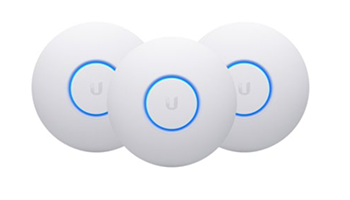

UBIQUITI UAP-NANOHD-3 UniFi nanoHD Ubiquiti 4x4 MU-MIMO 802.11ac Wave 2 Access Point – 3 pack (no POE)
Network specifications
Ethernet/Wi-Fi interface
LAN architecture 10Base-T/100Base-TX/1000Base-T
Wireless
Network Drive Form Factor External
Cascading Port Type 1 x 10Base-T/100Base-TX/1000Base-T
Number of ports 1
Ethernet switching protocol
Supported data exchange protocols Gigabit Ethernet/Fast Ethernet/Ethernet
Wi-Fi
Device Location External
Wi-Fi Band Frequency 2.4 GHz/5 GHz
TKIP encryption algorithm
WEP
WPA-PSK
WPA2-PSK
WPA
WPA2
AES
Compatibility with IEEE 802.11a network standards
IEEE 802.11b
IEEE 802.11g
IEEE 802.1Q(VLAN)
IEEE 802.3
IEEE 802.3ab
IEEE 802.3af
IEEE 802.3u
IEEE 802.11n
IEEE 802.11ac
IEEE 802.11ac Wave 2
IEEE 802.11r
IEEE 802.11k
IEEE 802.11v
Network features Power over Ethernet (PoE)
Power over Ethernet (PoE)
Web Interface
Web Interface
Dual Band
Dual Band
Wi-Fi Multimedia (WMM)
Wi-Fi Multimedia (WMM)
Beamforming technology
Beamforming technology
4x4 MIMO
4x4 MIMO
MU-MIMO
MU-MIMO
Wireless Uplink
Wireless Uplink
Antenna Internal
Power
Power over Ethernet External
Power consumption during operation 10.5 W
Other features
Mount kit accessories included
Dimensions and weight
Depth 160 mm
Height 32.65 mm
Width 160 mm
Nominal weight 0.3 kg
Terms of use
Maximum ambient temperature 70 °C
Max. ambient air humidity 95 %
Minimum ambient temperature -10 °C
Min. working air humidity 5 %
Guarantee
Warranty products - subject to return Yes
Warranty Term notes 24 months - for EU
Warranty Validity Criteria Serial Number
Logistics information
Package Weight - Gross (kg) 2.06 kg
Package Weight - Net (kg) 1.23 kg
Quantity per pack 1
Carton weight - Gross (kg) 12.25 kg
Packages in a carton 10
Package type With packaging
