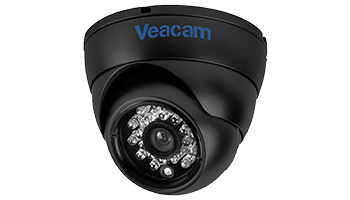

Camera

WVCDWA2

Sensor

1/2.8' 2M SONY Exmor CMOS Sensor

Min Illumination

0.01Lux@F1.2 （0Lux,IR on）

S/N

≥50dB(AGC OFF)

WDR

≥80dB

IR Range

20m

Lens

3.6mm

Interface

Ethernet

RJ45 10M/100M

Audio Input

1CH Audio Linear Input

Video Encode

Encoding

H.264, Main Profile, MJPEG

Resolution(Main Stream)

1920*1080，1-25(30)fps 1280*720，1-25(30)fps

Resolution(Sub Stream)

704*576，1-25(30)fps 640*480，1-25(30)fps

640*352，1-25(30)fps 320*240，1-25(30)fps

Video Compression

32Kbps-16Mbps Continuously adjustable, Support CBR/VBR

Subtitle Overlay

Support Channel Name, Date&Time,Stream Information
Overlay,Overlay Position adjustable

Data Transfer and Storage

Data Storage

Video, Image

Storage Mechanism

Manual, Auto(Loop, Timing,Alarm Switch Imput, Motion Detection)

Alarm Data Transfer

FTP, E-mail, Brower, Management Software

Network Protocol

TCP/IP、UDP、RTP、RTSP、RTCP、HTTP、DNS、DDNS、DHCP

FTP、NTP、PPPOE、SMTP、UPNP

Client-Side Browse

Support IE6.0 and Above (Web Server Embedded)
Support 10 Users Concurrent Access(MAX)
Support Windows Mobile、iPhone、iPad、Android Platform

ONVIF Protocol

ONVIF 2.4

General Parameters

Power

350mA

Weight

480g

IP Rating

IP66

Input Voltage

DC12V±10%/POE

Working Temperature

-10℃～+50℃

Working Humidity

＜90%RH(No Condensation)
