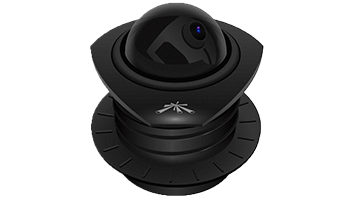

Ubiquiti AirCam Dome (AirCam-Dome)

The Ubiquiti AirCam Dome has a H.264 megapixel camera and combines advanced design, powerful performance with market leading cost-effectiveness.

Ubiquiti AirCam Dome Key Features

     Built-in Microphone
    30 FPS
    1MP/HDTV 720p
    4.0mm / F1.5
    Powered through Ethernet
    Product Model Number: AirCam-Dome

Included with all units:

     Power Over Ethernet Adapter
    AirVision UI and NVR Software Installation CD

Ubiquiti AirCam Dome Technical Specifications
Camera

     Ports: (1) 10/100 Ethernet Port, microSD Card Slot
    Sensor: Progressive Scan RGB CMOS ¼"
    Lens: 4.0mm/F1.5
    Horizontal of View: 47°
    Power: LED Orange
    Link/Active: LED Green
    Buttons: Factory Reset Button
    Maximum Power Consumption: 3.5 Watts

Video

    Video Compression: H.264
    Resolution: 1MP/HDTV 720p
    Maximum Frame Rate: 30 FPS
    Image Setting: Brightness, Contrast, Sharpness, Saturation, Mirror, Flip, Noise Reduction, 50 Hz/60 Hz

Audio

    Built-In Microphone: ECM (Omni.); Sensitivity=-42±3dB ; S/N=60dBA

General

    Processor: ARM-based 32-bit RISC
    Memory: 128MB DDR2 SDRAM, 8MB Flash
    Local Storage: Micro SD Card Slot (card not included)
    Maximum Active Array Size: 1280x800
    View Angle: 90° (H), 62° (V), 101° (D)

Network

    Security: Multiple user access with password protection, Access log
    Protocols: IPv4/v6, HTTP, UPnP, DNS, NTP, RTSP, DHCP, TCP, UDP, IGMP, RTCP, ICMP, ARP

Power

    Method Passive Power over Ethernet (12-24V)
    Power Supply: 24V/0.5A PoE Adapter included

Physical

    Dimensions: 100 x 94 mm (length x diameter)
    Weight: 184 g
    Mounting: Ceiling Mount

Environmental

    Operating Temperature: 0 to 40° C
    Operating Humidity: 20 - 80% Noncondensing

Certification

    CE, FCC, IC
