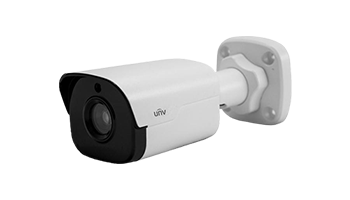

IPC2121SR3-PF36

Camera

Sensor

1/3", 1.3 megapixel, progressive scan, CMOS

Lens

3.6mm@F1.8

Angle of view(H): 76.7°

Shutter

Auto/Manual, 1/6~1/8000 s

Min. Illumination

Colour: 0.06 Lux (F1.4, 50IRE)

0 Lux with IR on

Day/Night

IR-cut filter with auto switch (ICR)

IR Range

Up to 30m (98 ft) IR range

S/N

>50dB

WDR

Digital

Noise Reduction

2D/3D

Video

Max. Resolution

1280×960

Video Compression

H.264/MJPEG

Frame Rate

960P (1280*960): Max. 25 fps; 720P (1280*720): Max. 30 fps; D1 (720*576): Max. 25 fps

Video Streaming

Triple

ROI

Supported

OSD

Up to 8 OSDs

Motion Detection

Up to 2 areas

Privacy Mask

Up to 4 areas

Network

Protocols

IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,RTP,RTSP,DNS,DDNS,NTP,FTP,UPnP,HTTP

Compatible Integration

ONVIF

Interface

Network

1 RJ45 10M/100M Base-TX Ethernet

General

Power

12 V DC, or PoE (IEEE802.3 af)

2.0 W (6.4 W with IR on)

Dimensions (L × W × H)

157.3 × 62.4 ×63 mm (6.2” × 2.5” × 2.5”)

Weight

0.45 kg (0.99 lb)

Working Environment

-35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 90% RH(non-condensing)

Ingress Protection

IP66
