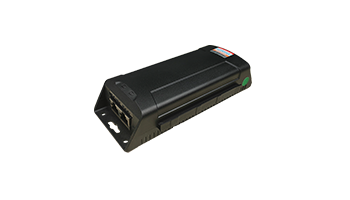

UTEPO UPI3301-PSD Single-Port Multi-Gigabit 802.3bt PoE++ Injector (90W)



This series contains the following types:

Single-Port Multi-Gigabit 802.3bt PoE++ Injector (60W) UPI3301-PSC

Single-Port Multi-Gigabit 802.3bt PoE++ Injector (90W) UPI3301-PSD

The product is a 90W Gigabit PoE Injector. It is a high-power PoE injector. They can easily achieve power over Ethernet without changing the original network equipment. The 90W Gigabit PoE Injector meets IEEE 802.3af/at/bt standard. The PoE output port can deliver up to 90W power. It supports a 10/100/1000/2500Mbps transmission rate, and the transmission distance is up to 100m. The injector is designed with a fanless, dust-proof shell, a wide operating temperature range from -5℃~45℃, 6kV surge protection.



The injector has high conversion efficiency (90%), lower heat radiation, and is plug-and-play. They are a good choice for Ethernet power supply in security engineering and integrated wiring engineering.



FEATURES

● IEEE 802.3bt/at/af

● The PoE output port can deliver up to 90W power

● Support 10/100/1000/2500Mbps transmission rate

● The transmission distance is up to 100m

● Fanless design
