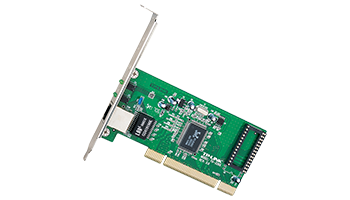

10/100/1000Mbps PCI Adapter
Complies with IEEE 802.3/802.3u/802.3ab Ethernet Standard
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols |
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p CSMA/CD, TCP/IP, PCI Revision 2.1/2.2 |
| Interface |
32-bit PCI 1 10/100/1000Mbps RJ45 port |
| Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000Base-T: UTP category 5, 5e cable (maximum 100m) |
| Data Rates |
10/100/1000Mbps for Half-Duplex mode 20/200/2000Mbps for Full-Duplex mode |
| LED Indicator | 1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act, Duplex |
| Flow Control | IEEE 802.3x Flow Control (Full-Duplex) |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents |
Network Adapter Resource CD Quick Installation Guide |
| System Requirements | Me/NT/2000/XP/Vista/7,Linux/Novell Netware |
| Environment |
Operating Temperature: 0~40 (32~104) Storage Temperature: -40~70 (-40~158) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
