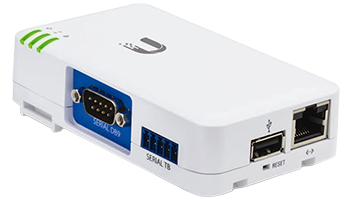

The Ubiquiti mFi mPort-S has two mFi RJ45 connectors and a terminal block connector. The mPort-S Serial features RS232/422/485 serial connectivity through a standard DB9 serial port or a terminal block connector. The mPort has built-in WiFi and Ethernet to connect to the IP network

    2 mFi RJ45 connectors
    1 terminal block connector
    built-in WiFi and Ethernet to connect to the IP network
    Product Model Number: mPort-S


Ubiquiti mFi mPort-S - Technical Specifications
Dimensions

    100 x 60 x 27.5 mm (H x W x D) 100 x 60 x 36.5 mm (with Bracket)

Weight

    4.2 oz (with Bracket)

Power Supply

    24V, 0.5A Surge Protection Integrated PoE Adapter (Included)

Max. Power Consumption

    3 W

Networking Interface

      (1) 10/100 Ethernet Port

Ports

    (1) DB9 Serial Port (1) Terminal Block Serial Port

WiFi Standards

    802.11b/g/n

    (1) DB9 Serial Port (1) Terminal Block Serial Port

Serial Protocols

    RS232, RS422, RS485

Memory

    16 MB RAM, 8 MB Flash

LEDs

    3 LEDs (Power, Ethernet, Status)

Mounting

    Wall-Mount Bracket (Included)

Operating Temperature

    -10° to 70° C

Operating Humidity

    5 to 80% Condensing
