Optics

•
•     Day/night functionality
•     Smart IR, up to 30m (98 ft) IR distance
•     Optical glass window with higher light transmittance
•     IR anti-reflection window to increase the infrared transmittance
•     3D DNR (Digital Noise Reduction)

Compression

•
•     Dual streams
•     ROI (Region of Interest)
•     9:16 corridor mode
•     Customized OSD

Network

•
•     NAA (Network Auto-Adaptability) to cope with up to 5% network packet loss
•     UNP(Universal Network Passport) patented technology for NAT traversal
•     Dual direct-to-iSCSI data block storage
•     ONVIF Conformance

Structure

•     Wide temperature range: -35°C to 60°C (-31°F to 140°F)
•     Wide voltage range of ±25%
•     IP66-rated

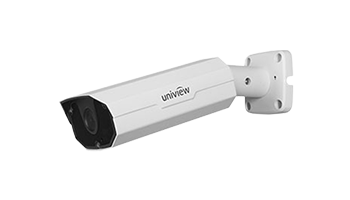

• Camera		IPC222E-IR-F120-IN
  Sensor	1/2.8", 2Megapixel, progressive scan CMOS
  Shutter	Auto/Manual, 1/6~1/8000s
  Lens	12 mm
  Angle of View (H)	28°
  Day/Night	IR-cut filter with auto switch (ICR)
  Min. Illumination	Color: 0.06 Lux (F1.6, 50IRE)
  	Black & White: 0.03Lux (F1.6, 50IRE)
  S/N	>52dB
  Image Rotation	Support
  Video
  Maximum Resolution	1920 × 1080
  Video Compression	H.264, MJPEG
  Frame Rate	1080P (1920×1080) 30 fps; 720P (1280×720) 30 fps; D1 (720×576) 25 fps
  9:16 Corridor Mode	Support
  ROI	Support
  Video Streaming	Dual
  OSD	Up to 8 OSDs
  Privacy Mask	Up to 4 areas
  Audio
  Audio Compression	G.711
  Two-way Talking	Support
  Storage
  Back-end Storage	Dual direct-to-iSCSI data block storage
  Network
  Protocols	L2TP,IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTP,RTSP,Qos,NTP,FTP,HTTP,SNMP,SIP
  Compatible Integration	ONVIF, IMOS,API
  Interface
  Audio I/O	Audio cable
  	Input: impedance 35 kΩ; amplitude 2 V [p-p]
  	Output: impedance 600 Ω; amplitude 2 V [p-p]
  Alarm I/O	2/1
  Network	10M/100M Base-TX Ethernet
  General
  Power Supply	12 V DC, or PoE (IEEE802.3af)
  	Power consumption: 3.5 W (with IR on: extra 4 W)
  Dimensions (L × W × H)	187.8 × 76 × 44 mm (7.4” × 3.0” × 1.7”)
  Weight	0.58 kg (1.3 lb)
  Working Environment	-35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 90% RH(non-condensing)
  Ingress Protection	IP66
