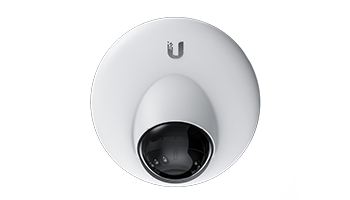

UVC-G3-DOME Specifications

• Dimensions Ø 132 x 60 mm (Ø 5.20 x 2.36")
• Weight 260 g (9.17 oz)
• Networking Interface (1) 10/100 Ethernet Port
• Sensor 1/3" 4-Megapixel HDR Sensor
• Lens EFL 2.8 mm, ƒ/2.0
• Night Mode IR LEDs with Mechanical IR Cut Filter
• Microphone Yes
• Button Factory Reset Button
• Power Method 802.3af PoE or 24V Passive PoE
• Power Supply 802.3af PoE Switch or24V, 0.5A PoE Adapter (Included with Single-Pack)
• Maximum Power Consumption 4W
• Mounting Wall/Ceiling
• Operating Temperature -30 to 70° C (-22 to 158° F)Operating Humidity 20 - 90% Noncondensing

Video

• Video Compression H.264
• Resolution 1080p Full HD (1920x1080)
• Maximum Frame Rate 30 FPS
• Image Settings Brightness, Contrast, Sharpness, Saturation, Noise Reduction, 50/60 Hz

General

• Processor Ambarella S2L66 (816 MHz ARM Cortex-A9)
• Memory 512 MB DDR3L
• Viewing Angle Before Lens Correction After Lens Correction 100.4° (H), 59.1° (V), 117.3° (D)87.8° (H), 55.4° (V), 96.4° (D)
• Supported UniFi Video Version UniFi Video 3.2 (or Newer)
• UniFi Video System Requirements 64-bit Microsoft Windows 10/8/7, Ubuntu 12.04 or 14.04, or Debian 7.0 System withan Intel or Compatible 1.86 GHz (or Above) Processor and a Minimum of 2 GB RAM.
