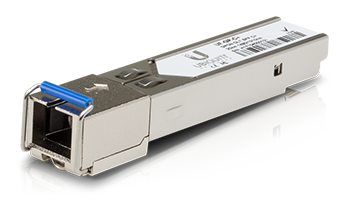

The U Fiber OLT’s GPON SFP ports are designed for use with the UF-GP-B+ SFP module. The UF-OLT includes one UF-GP-B+ module; additional modules can be purchased separately.

UF-GP-B+ Specifications
• Supported Media: Single-Mode Fiber
• Connector Type: (1) SC/UPC
• TX Wavelength:1490nm
• RX Wavelength:1310nm
• TX Power Range: 1.5 to 5dBm
• RX Power Range: -28 to -8dBm
• Downstream Data Rate: 2.5 Gbps
• Upstream Data Rate: 1.25 Gbps
• Cable Distance: 20 km
