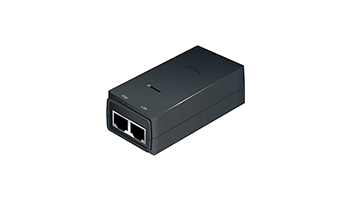

UBIQUITI POE-24-12W-G, 24VDC,Gbit,24W adaptor

15.90 €
Συμπεριλαμβάνεται Φ.Π.Α. 20%
χωρίς τα έξοδα αποστολής

Κωδικός: 23278

Βάρος: 0.400 kg
Σε απόθεμα

Τεχνικά Στοιχεία Βασικά Στοιχεία Αξιολόγηση

UBNT-POE-24-24W-G

UBNT-POE-24-24W-G is a gigabit PoE adapter designed to supply equipment powered by 24V up to1A (RouterBoard, Alix, WispStation, Bullet and others). Ideal for powering client stations CPE and base stations. The adapter has LED indicating power supply.

Technical Specification

Output Voltage	24VDC @1.0A
Input Voltage	90-260VAC @47-63Hz
Input Current	0.3A @120VAC, 0.2A @230VAC
Inrush Current	<15A peak @120VAC, <30A peak
Efficiency	70+%
Output Ripple	1% Max
Switching Frequency	200kHz
Line Regulation	+/- 0.5%
Load Regulation	+/- 1%
Operating Temperature	-10C to +60 deg C
Storage Temperature	-20 to +85 deg C
Operating Humidity	-10C to +60 deg C
Size (LXWXH)	85 x 55 x 33 (mm)
Weight	4 oz
AC Connector	IEC-320 C6
Data IN / POE	RJ45 Shielded Socket
80% Current Indicator	Power LED will change color
Surge Protection	Common Mode
Clamping Protection	11V Data, 77.5V Power
Max Surge Discharge	1200A (8/20uS) Power
Peak Pulse Current	36A (10/1000uS Data)
Shunt Capacitance	<5pF data
Response Time	<1nS

Τιμή Μονάδος: 15.90 €
Κατασκευαστής: Ubiquiti
Βάρος: 0.400 kg
