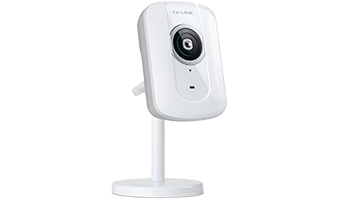

Wireless N Network Camera TL-SC2020N
Highlights:
Features
| CAMERA | |
| Image Sensor | 1/4" Progressive scan CMOS sensor |
| Digital Zoom | 10x Digital |
| Minimum Illumination | 0.5 Lux |
| VIDEO/IMAGE | |
| Video Compression | Motion JPEG |
| Frame Rate & Resolutions | Up to 30(NTSC) / 25(PAL) fps at 640x480, 320x240, 160x120 |
| Video Streaming | Motion JPEG |
| Image Settings | Rotation: Mirror, Flip, Mirror Flip; |
| Brightness, Contrast, Saturation, Hue; | |
| Overlay capabilities: Time, Date, Text and Privacy image | |
| AUDIO | |
| Audio Communication | One-way |
| Audio Input | Built-in microphone |
| Audio Compression | G.711 PCM, 8 kHz, 64 kbit/s |
| ALARM AND EVENT MANAGEMENT | |
| Events Trigger | Built-in motion detection, schedule |
| Notification Method | E-mail, FTP |
| NETWORK | |
| Standards and Protocols | TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, |
| DNS, NTP, UPnP, RTSP, RTP, RTCP, HTTP, | |
| TCP,UDP,3GPP/ISMA RTSP | |
| WIRELESS | |
| Wireless Data Rates | IEEE 802.11 b/g/n , Up to 150Mbps |
| Frequency | 2.4-2.4835GHz |
| Wireless Encryption | 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK |
| INTERFACES | |
| Network Interface | 1 RJ- 45 for Ethernet 10/100 Base-T |
| Power Connector | DC power jack |
| Audio Input | Built-in microphone |
| Button | Reset push button |
| SURVEILLANCE MANAGEMENT | |
| Bundled Management Software | Viewing and recording up to 16 cameras |
| GENERAL | |
| External Power Supply | 5VDC, Max 3W |
| Certification | CE, FCC, RoHS |
| Package Contents | Wireless N Network Camera TL-SC2020N |
| Power Adapter | |
| RJ-45 Ethernet Cable | |
| Quick Installation Guide | |
| Resource CD | |
| Camera Mount Kit | |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
| Dimensions( H X W X D ) | 96 x 66 x 28 mm (3.8 x 2.9 x 1.1 in.) |
