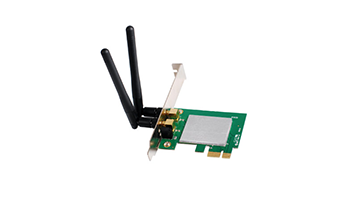

300Mbps Wireless N  PCI-E Adapter

2*2dBi detachable antennas

Complies with IEEE 802.11n/g/b standards for 2.4GHz wireless LAN.- Up to 300Mbps high speed transmission rate.- Advanced MIMO technology enhances the throughput and wireless coverage.- Supports 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) encryption.- Works with all existing network infrastructure. - Provides two methods of operation: Infrastructure and Ad-Hoc. - Supports Windows 10/8/7/XP/Vista and Linux.- Easy to configure and monitor.

HARDWARE FEATURES
Interface

•  PCI-E

Antenna

•  2 *2dBi detachable antennas

LED Indicators

• 1* LINK
• 1* ACT

Dimensions (L x W x H )

• 2.8 x 2.2 x 0.1 in. (72 x 56 x 1.6mm)

WIRELESS FEATURES

Standards

• IEEE 802.11n
• IEEE 802.11g
• IEEE 802.11b

RF Frequency

•  2.4~2.4835GHz

Data Rate

• 802.11n: up to 300Mbps
• 802.11g: up to 54Mbps (dynamic)
• 802.11b: up to11Mbps (dynamic)

Wireless Security

• 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)

EIRP

• < 20dBm

Reception Sensitivity

• 270M: -61 dBm@10% PER
• 135M: -65 dBm@10% PER
• 54M: -68 dBm@10% PER
• 11M: -85 dBm@8% PER
• 6M: -88 dBm@10% PER
• 1M: -90 dBm@8% PER

Package Contents

• N300PE Wireless Adapter *1
• 2dBi antenna *2
• Resource CD *1
• Low Profile Bracket *1
• Quick Installation Guide *1

System Requirement

• Windows 10 (32/64bits)
• Windows 8 (32/64bits)
• Windows 7 (32/64bits)
• Windows XP (32/64bits)
• Linux

Environment

• Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
• Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
