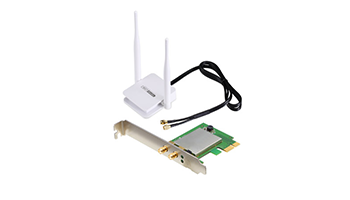

AC1200 PCI-E Wireless PCI-E cards

With external magnetic antenna station, Windows 10/8/7/Vista

IEEE 802.11ac/n/g/b/a, up to 867Mbps (5G) or 300Mbps (2.4G) - Two SMA interface, one integrated antenna.- Next generation 11ac Wi-Fi for superior wireless performance.- Supports 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) encryption.- Works with all existing network infrastructure. - Easy to configure and monitor. - Supports Window 10/8/7/Vista and Linux.

HARDWARE FEATURES

Hardware

• PCI-E

Antenna

• 2* 5dBi desktop antennas

LED Indicators

• 1* LINK
• 1* ACT

WIRELESS FEATURES

Standards

• IEEE 802.11ac
• IEEE 802.11n
• IEEE 802.11g
• IEEE 802.11b
• IEEE 802.11a

RF Frequency

• 2.4GHz
• 5GHz

Data Rate

• 2.4G: up to 300Mbps
• 5G: up to 867Mbps

Wireless Security

•  64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)

EIRP

• < 20dBm

Reception Sensitivity

• 2.4G: 11b 11M: -81 dbm
• 11g 54M: -68 dbm
• 11n: HT20: -65 dbm HT40: -62 dbm
• 5G：11a 54M: -68 dbm
• HT20 -65 dbm HT40: -62 dbm
• 11ac HT80: -61dbm

Package Contents

• A1200PE Wireless Adapter *1
• Desktop antenna *2
• Resource CD *1
• Low Profile Bracket *1
• Quick Installation Guide *1

System Requirement

• Windows 10 (32/64bits)
• Windows 8 (32/64bits)
• Windows 7 (32/64bits)
• Linux
