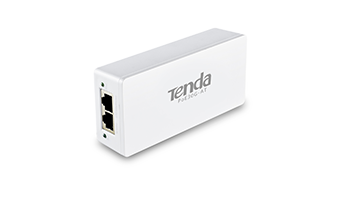

TENDA POE30G-AT PoE Injector delivers up to 30W output power per port



The Tenda PoE30G-AT is the IEEE802.3 AT Gigabit PoE injector, which fully conforms to the standard of wtih 802.3, transmitting power through Ethernet cable, the maximum transmission distance can reach 100 meters. The PoE injector has two Ethernet gigabit data ports and an output port combination of data and power. In addition, the device can be used for Ethernet device IEEE802.3af/ compatible PoE power applications such as wireless AP, VoIP phone and web CAM. The power supply of Ethernet cable not only provides system reliability, traditional power grid expansion, but also simplifies the deployment of power lines.



PoE30G-AT PoE30G-AT Gigabit PoE Injector



What It Does



The Tenda PoE30G-AT is the IEEE802.3 AT Gigabit PoE injector, which fully conforms to the standard of wtih 802.3, transmitting power through Ethernet cable, the maximum transmission distance can reach 100 meters. The PoE injector has two Ethernet gigabit data ports and an output port combination of data and power. In addition, the device can be used for Ethernet device IEEE802.3af/ compatible PoE power applications such as wireless AP, VoIP phone and web CAM. The power supply of Ethernet cable not only provides system reliability, traditional power grid expansion, but also simplifies the deployment of power lines.



Main Features



>> PoE ports supports IEEE802.3at and IEEE802.3af standard

>> Equipped with gigabit port, blazing-fast tranfer rate, maximum transfer rate of up to 30W for single port

>> power distance extension of up to 100 meters for standard cat. 5e and cat. 6 Ethernet cable

>> Plug and play, no any configuration required



Power supply distance extension



The standard cat’s power distance can be extended to 100 meters. The device can extend the range of PoE power over long distances, and simplify the deployment of power lines so that PD equipment can supply power.



Gigabit blazing-fast delivery



10/100M/1000Mbps autosensing RJ45 port provides fast data delivery, supports wire speed forwarding and MDI/MDIX, plug and play.



Stable performance





Adopts new chips solution, brings new performance experience, powerful data transfer and power



Description PoE: Injector



Standard&Protocol: Compatible with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3af , IEEE802.3atStandard

CSMA/CD, TCP/IP



Features:

Support the powered devices compatible with IEEE802.3af、IEEE802.3at Standard

Transmission range up to 100M

Plug and play



Port:

1 GE port

1 data&power output port supporting PoE



Indicator: PWR, PoE

Dimension: 131mm*60mm*33mm

Power Output: 30W

Operation Temperature: 0℃~40℃

Storage Temperature: -40℃~70℃

Operating Humidity: 10%~90% (noncondensing)

Storage Humidity: 5%~90% (noncondensing)

Certification: CEFCCROHS
