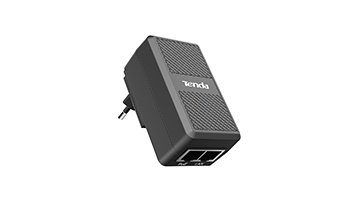

Tenda POE15F-48V-I 10/100M PoE Adapter



What it does



PoE Adapter PoE15F-48V-I can realize the synchronous transmission of network data and power through an Ethernet cable (Cat.5 or better). The output power of each port is as high as 15W, which can be exported as PoE equipment (via RJ45 port). You can connect to ieee802.3af's PD, such as wireless AP, IP camera, IP phone, etc. In a sense, reducing installation costs and improving network performance is a good choice.



Hardware

Network standards

IEEE802.3、IEEE802.3u

LED Indicator

power indicator

Interfaces

1*10/100 Base-TX Ethernet ports (Data)

1*10/100 Base-TX Ethernet ports（Data and Power）

Transmission media

Recommended: CAT5/5e UTP or better

Dimension

82.66mm*46.83mm*40.26mm

Level of protection

ESD:

Air discharge: ±10kV

Contact discharge: ±8kV

Forwarding mode

Store-and-forward

Transmission Rate

100Mbps

PoE budget

Single port: AF: 15.4W

Whole device: 15W

Power consumption

15W

Input voltage

100－240V AC 50/60Hz

48V DC（Power Adapter Output）

Mounting

Desktop mounting: support

Environment

Operating Temperature: 0℃~45℃

Storage Temperature: -40℃~70℃

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensingMain Features



Delivers power and data through one Ethernet cable for easy network extension

Compatible with IEEE 802.3af compliant powered devices

Supply Over-voltage, over-current and overload protection mechanism

Transmission up to 100 meters with Cat.5 or better Ethernet cables

Support AC input 100-240V, DC output 48V

4kV lightning protection
