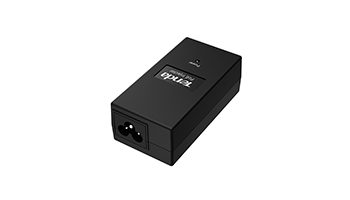

TENDA POE15F 10/100Mbps PoE Injector



PoE injector PoE15F can realize the synchronous transmission of network data and power through an Ethernet cable (Cat.5 or better). The output power of each port is as high as 15W, which can be exported as PoE equipment (via RJ45 port). You can connect to ieee802.3af's PD, such as wireless AP, IP camera, IP phone, etc. In a sense, reducing installation costs and improving network performance is a good choice.



What It Does



PoE injector PoE15F can realize the synchronous transmission of network data and power through an Ethernet cable (Cat.5 or better). The output power of each port is as high as 15W, which can be exported as PoE equipment (via RJ45 port). You can connect to ieee802.3af's PD, such as wireless AP, IP camera, IP phone, etc. In a sense, reducing installation costs and improving network performance is a good choice.



Main Features



>> Delivers power and data through one Ethernet cable for easy network extension

>> Compatible with IEEE 802.3af compliant powered devices

>> PoE Port Delivers power up to 100 meters

>> Plug and Play, no configuration required





Power Over Ethernet



One PoE port to power connected devices for flexible network deployment



Extend Power Supply



Distance of power transmission via Ethernet cable is up to 100 meters



Plug and Play



Hassle-free setup, no configuration required



Features:

Compatible with IEEE802.3, IEEE802.3u Standard

Support the powered devices compatible with IEEE802.3af Standard

Transmission range up to 100M

Power output can be matched automatically

Plug and play



Port:

1 FE port

1 data&power output port supporting PoE



Power Output: 15W（Max. 48VDC）

Indicator: Power

Dimension: 84.5*44*29.8 mm. (3.32*1.73*1.17 in )(W*D*H)

Temperature: Operating Temperature: 0℃ ~ 45℃

Storage Temperature: -40℃ ~ 70℃

HumidityOperation: 10%~90% (noncondensing)

Storage: 5%~90% (noncondensing)
