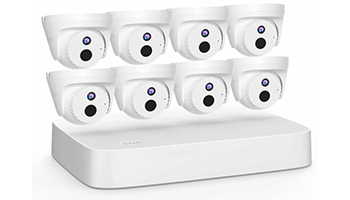

Tenda Network Camera kit, 8x 4MP dome, 1x PoE NVR, accessories, no HDD K8P-4CR
Product colour
White
International Protection (IP) code
IP67
LED indicators
Y
Total Power over Ethernet (PoE) budget
60 W
Output voltage
51 V
Output current
1.25 A
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-30 - 70 °C
Width
200 mm
Weight
780 g
Height
48 mm
Depth
200 mm
Mobile operating systems supported
iOS
Browser supported
Chrome, Edge, Opera, Safari
Maximum resolution (HDMI)
3840 x 2160 pixels
Multi-screen
Y
Backup function
Y
Maximum frame rate
30 fps
Video codecs
H.264 / H.265
Playback modes
Pause, Play, Stop
Total megapixels
4 MP
Video input channels
8 channels
Video motion detection
Y
Audio formats supported
G.711 A-law
Output bandwidth
60 Mbit/s
PoE network video recorder
Yes
Cables included
Ethernet cable 1 m
AC adapter included
Y
Screwdriver included
Y
DFU / User manual
Y
Mouse included
Y
Number of cameras
8
Screws included
Y
Number of HDDs supported
1
HDD interface
SATA
Maximum storage capacity
10 TB
PoE standard
IEEE 802.3af
Power over Ethernet (PoE)
Y
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
HDMI output
Y
Audio RCA outputs
1
Power over Ethernet (PoE) ports quantity
8
Ethernet LAN data rates
100
VGA (D-Sub) output ports
1
USB 2.0 ports quantity
2
Audio RCA inputs
1
Applications support
Y
Aperture
F2.2
Number of infrared LEDs
1
Motion detection
Yes
Maximum resolution
2560 x 1440 pixels
Product dimensions
106.8 x 90.5 mm
Viewing angle, horizontal
74,9°
Viewing angle, diagonal
88.2°
Viewing angle, vertical
41.3°
Mounting type
Mounting to wall or ceiling
Optical sensor size
25.4 / 3 mm (1 / 3")
Night vision distance
30 m
LED type
IR
Night mode
Y
Fixed focal length
4 mm
Sensor type
CMOS
Weight
174 g
Digital Wide Dynamic Range (DWDR)
Y
Noise reduction technology
3D-DNR digital noise reduction
Built-in microphone
Y
