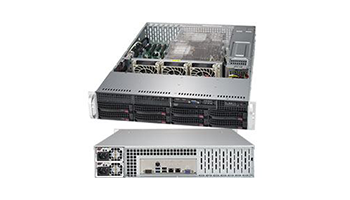

SUPERMICRO AS-6029P-TR-OTO-47 SuperServer 6029P-TR

SUPERMICRO AS-6029P-TR-OTO-47 SuperServer 6029P-TR
8399.00 €
Συμπεριλαμβάνεται Φ.Π.Α. 20%
χωρίς τα έξοδα αποστολής
Ποσότητα:

Κωδικός: 44878

Σε απόθεμα
Βάρος: 15.000 kg
Σε απόθεμα

Τεχνικά Στοιχεία Βασικά Στοιχεία Αξιολόγηση
SUPERMICRO AS-6029P-TR-OTO-47 SuperServer 6029P-TR


Product SKUs

SYS-6029P-TR
  • SuperServer 6029P-TR (Black)
Motherboard


Super X11DPi-N
Processor

CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
    Dual UPI up to 10.4GT/s
  • Support CPU TDP 70-205W
Cores
  • Up to 28 Cores
Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)
* CPU SKUs not supported: Gold 6256 and Gold 6250(L) (L = increased memory capacity per socket), Gold 6233W and Gold 5216W
System Memory

Memory Capacity
  • 16 DIMM slots
  • Up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
Memory Type
  • 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.
On-Board Devices

Chipset
  • Intel® C621 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
  • Dual 1GbE LAN with Intel® X722
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC
Input / Output

SATA
  • 8 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • Rear USB: 2 USB 3.0 + 2 USB 2.0
  • Front USB: 2 USB 2.0
  • USB Header: 1 Type A
VGA
  • 1 VGA port
Serial Port / Header
  • 2 Fast UART 16550 serial
  • 2 COM Ports (1 rear, 1 header)
DOM
  • 2 SuperDOM (Disk on Module) ports
System BIOS

BIOS Type
  • AMI UEFI
Management

Software
Power Configurations
  • ACPI / APM Power Management
PC Health Monitoring

CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors

Chassis

Form Factor
  • 2U Rackmount
Model
Dimensions and Weight

Width
  • 17.2" (437mm)
Height
  • 3.5" (89mm)
Depth
  • 25.5" (647mm)
Package
  • 26.7" (H) x 11.4" (W) x 34.5" (D)
Weight
  • Net Weight: 35.5 lbs (16.1 kg)
  • Gross Weight: 69 lbs (31.2 kg)
Available Colors
  • Black
Front Panel

Buttons
  • Power On/Off button
  • System Reset button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • System information (overheat/UID) LED
Expansion Slots

PCI-Express
  • 4 PCI-E 3.0 x16 (Low-profile)
  • 2 PCI-E 3.0 x8 (Low-profile)
Drive Bays

Hot-swap
  • 8 Hot-swap 3.5" SATA drive bays
Backplane

Τιμή Μονάδος: 8399.00 €
