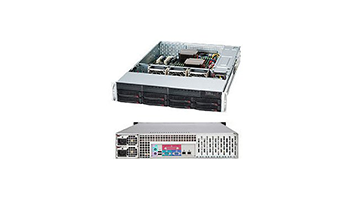

SUPERMICRO CSE-825TQ-R740LPB SuperChassis CSE-825TQ-R740LPB, 2U Rack-Mountable, 8x3.5" HS HDD bays, 2x3.5" fixed HDD bays, opt. Slim ODD, Extended ATX, 7 LP slots, Redundant PSU 740W 80+94% (1+1), Black



The system

Rack-Mountable form factor cabinet

Motherboard - form factor Extended ATX

Number of supported motherboards 1

Supported Mainboard Form Factor ATX

Extended ATX



Nests provided

Number of internal slots for 3.5-inch devices 2

Number of Hot-Swap sockets for 3.5-inch devices 8

Number of thin, outer sockets 1



Slots provided

Number of expansion slots 7



System fans

Max. number of supported fans 3 count

Fans - number 3 x 80mm



Power

Power supply type - redundant

Power supply location Internal

Redundant Power Device Installed Quantity 1 + 1

Number of installed power supplies 2

Max. number of supported power supplies 2

Output power 740 W

Input voltage AC 100-240 V

Input frequency 50/60 Hz



Other features

Standard cabinet height 2 U

Material Steel

BSMI / CCC / FCC class A / TUV / CB / UL / CUL certificates

Exterior color Black

Package type With packaging



Operating conditions

Max. operating ambient temperature 35 V ° C

Min. operating ambient temperature 5 V ° C

Max. ambient humidity 90%

Min. operating humidity 8%

Max. ambient temperature in off mode 70 V ° C

Min. non-operating ambient temperature -40 V ° C

Max. humidity in off mode 95%

Min. humidity in idle mode 5%



Dimensions and weight

Depth 647 mm

Height 89 mm

Width 437 mm

Nominal weight 23.59 kg



Warranty

Warranty products - refundable Yes

Warranty validity criteria Serial number



Logistic information

Package depth (mm) 876 mm

Package width (mm) 678 mm

Package height (mm) 290 mm

Package weight - Gross (kg) 23.6 kg
