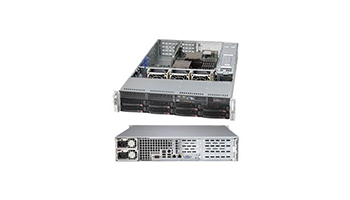

SUPERMICRO SC825TQ-R500WB server chassis Rackmount 2U w/ 500W Redundant 80 Plus Platinum Level Certified Power Supply w/ PMBus, for Motherboard up to 13.68in x 16.5in E-ATX maximum size - Includes 8x 3.5in Hot-Swap SAS/SATA Drive Bays, SAS/SATA Backplane, DVD-ROM



The system

Rack-Mountable form factor cabinet

Motherboard - form factor Extended ATX

Number of supported motherboards 1



Nests provided

Number of internal slots for 3.5-inch devices 2

Number of Hot-Swap sockets for 3.5-inch devices 8



Slots provided

Number of expansion slots 7



Optical storage device

DVD-ROM optical drive



System fans

Max. number of supported fans 3 count



Supported interfaces

USB2.0 1 (4-pin USB (type A) x 2)



Power

Power supply type - redundant

Power supply location Internal

Redundant Power Device Installed Quantity 1 + 1

Output power 500 W

Input voltage AC 100-240 V

Input frequency 50/60 Hz



Other features

Standard cabinet height 2 U

BSMI / CCC / CE / EMC / FCC class A / TUV / CB / UL / CUL certificates

Exterior color Black

Package type With packaging



Operating conditions

Max. operating ambient temperature 35 V ° C

Min. operating ambient temperature 5 V ° C

Max. ambient humidity 80%

Min. operating humidity 8%

Max. ambient temperature in off mode 70 V ° C

Min. non-operating ambient temperature -40 V ° C

Max. humidity in off mode 95%

Min. humidity in idle mode 5%



Dimensions and weight

Depth 647 mm

Height 89 mm

Width 437 mm

Nominal weight 23.59 kg



Warranty

Warranty products - refundable Yes

Warranty validity criteria Serial number



Logistic information

Package depth (mm) 876 mm

Package width (mm) 678 mm

Package height (mm) 290 mm

Package weight - Gross (kg) 23.59 kg
