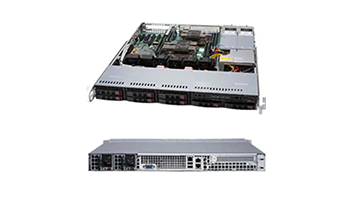

SUPERMICRO AS-1029P-MTR-OTO-28 SuperServer 1029P-MTR

4390.00 €
Συμπεριλαμβάνεται Φ.Π.Α. 20%
χωρίς τα έξοδα αποστολής

Κωδικός: 44879

Βάρος: 15.000 kg
Μη Διαθέσιμο

Τεχνικά Στοιχεία Βασικά Στοιχεία Αξιολόγηση

Specifications

Processor

CPU	Dual Socket P (LGA 3647) 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡, Dual UPI up to 10.4GT/s Support CPU TDP 70-140W with IVR
Cores	Up to 28 Cores
Note	‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

System Memory

Memory Capacity	8 DIMM slots Up to 2TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
Memory Type	2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note	† 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro

On-Board Devices

Chipset	Intel® C621 chipset
SATA	SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers	Marvell 88E1512 PHY Gigabit Ethernet controller Supports 1000BASE-T
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video	ASPEED AST2500 BMC

Input / Output

SATA	8 SATA3 (6Gbps) ports
LAN	2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	2 USB 2.0 ports (rear)
Video	1 VGA port
Serial Port / Header	1 COM port (header)
DOM	2 SuperDOM (Disk on Module) ports

System BIOS

BIOS Type	256Mb SPI Flash EEPROM with AMI BIOS

Management

Software	Intel® Node Manager IPMI 2.0 KVM with dedicated LAN NMI SSM, SPM, SUM SuperDoctor® 5 Watch Dog
Power Configurations	ACPI / APM Power Management

PC Health Monitoring

CPU	Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Front Panel

Buttons	Power On/Off button System Reset button
LEDs	Power status LED HDD activity LED Network activity LEDs Universal Information (UID) LED

Τιμή Μονάδος: 4390.00 €
Κατασκευαστής:
Βάρος: 15.000 kg
