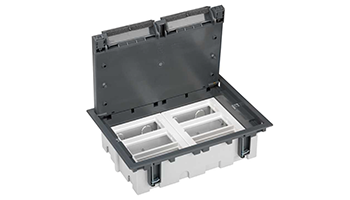

SIMON 52050006-035 Adjustable floor box for 12 elements in concrete floor installation grey Simon 500 Cima



SERIES: Simon 500 Cima

VERSION: 12 elements

DIMENSIONS: 225 x 310 x 76 mm

FINISH: Grey

MATERIAL: Plastic



Product description



This adjustable floor box is the Simon 500 Cima range and is specially designed to be flush mounted into a concrete floor, but also may be used in raised floor. The box is capable of providing energy a total of 12 elements is made up of 12 modules and has dimensions of 225 x 310 millimetres, and 76 millimetres of depth. It offers in a beautiful grey colour. To perform a complete installation, once configured, the product must be combined with a plastic tray with reference Simon 52052106-035. If not installing the box in the same floor lining you can also choose but optionally by combining it with the flush-mount trim cover reference ref.52053106-035. The manufacturing materials of the box are of high quality and consist of metal components with self-extinguishing and halogen-free thermoplastic insulation. That gives the product a high resistance and also considerably increases your safety because it does not spread flame in case of fire and reduces the toxicity of smoke.



Weight 2 Kgr
