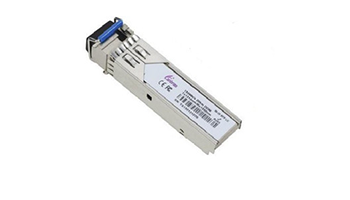

SP-OT-GMM85-05LC SFP module

9.90 €
Συμπεριλαμβάνεται Φ.Π.Α. 20%
χωρίς τα έξοδα αποστολής

Κωδικός: 32536

Βάρος: 0.100 kg
Σε απόθεμα

Τεχνικά Στοιχεία Βασικά Στοιχεία Αξιολόγηση

Full

The Security Professionals SP-OT-GMM85-05LC provides a compact, hot-pluggable optical interface for Gigabit Ethernet connectivity. Designed for multimode fibre with a 50/125 µm core, it uses 850 nm optical transmission and supports the 1000BASE-SX standard.

The duplex LC connector uses two optical fibres, one for transmitting and the other for receiving data. With a maximum link distance of 550 metres, this module is suitable for short-range fibre connections in offices, server rooms, commercial buildings and local area networks.

The transceiver supports Digital Diagnostic Monitoring (DDM), the SFF-8472 diagnostic interface and a 3.3 V power supply. It operates at temperatures from 0°C to +70°C and offers compatibility programming for selected Cisco, H3C and Huawei equipment

Technical Specifications

Specification	Details
Brand	Security Professionals
Model	SP-OT-GMM85-05LC
Module type	SFP optical transceiver
Data rate	1.25 Gbps
Ethernet standard	1000BASE-SX
Fibre type	Multimode (MMF)
Fibre specification	50/125 µm
Wavelength	850 nm
Maximum transmission distance	550 m
Connector	LC duplex
Fibre configuration	Dual fibre
Digital monitoring	DDM
Diagnostic interface	SFF-8472
Signal interface	LVPECL
Supply voltage	3.3 V
Power consumption	1 W
Operating temperature	0°C to +70°C
Laser safety	IEC 60825
Environmental compliance	RoHS
Dimensions	13.7 × 56.5 × 8.95 mm
Compatibility	Selected Cisco, H3C and Huawei devices

Τιμή Μονάδος: 9.90 €
Κατασκευαστής:
Βάρος: 0.100 kg
