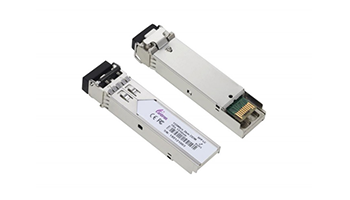

SP-OT-GBD1315-3LC SFP module Single mod

11.90 €
Συμπεριλαμβάνεται Φ.Π.Α. 20%
χωρίς τα έξοδα αποστολής

Κωδικός: 32537

Βάρος: 0.100 kg
Σε απόθεμα

Τεχνικά Στοιχεία Βασικά Στοιχεία Αξιολόγηση

Full Technical Description

The Security Professionals SP-OT-GBD1315-3LC provides a compact, hot-pluggable optical interface for single-mode fibre connections. BiDi technology enables bidirectional data transmission over one fibre, reducing fibre infrastructure requirements.

Operating at up to 1.25 Gbps, the module supports link distances of up to 3 km. It transmits at 1310 nm and receives at 1550 nm, requiring a compatible counterpart with the opposite wavelength configuration.

The transceiver supports Digital Diagnostic Monitoring (DDM), follows the SFF-8472 diagnostic interface specification and uses a 3.3 V supply. Its operating temperature range is 0°C to +70°C. Reprogramming options are available for compatibility with selected Cisco, H3C and Huawei equipment

Technical Specifications

Specification	Details
Brand	Security Professionals
Model	SP-OT-GBD1315-3LC
Module type	BiDi SFP transceiver
Data rate	1.25 Gbps
Ethernet standard	1000BASE-LX
Fibre type	Single-mode (SM)
Fibre configuration	Single fibre, bidirectional
Maximum transmission distance	3 km
Transmit wavelength	1310 nm
Receive wavelength	1550 nm
Connector	LC
Digital monitoring	DDM
Diagnostic interface	SFF-8472
Electrical interface	LVPECL
Supply voltage	3.3 V
Power consumption	1 W
Operating temperature	0°C to +70°C
Compliance	RoHS, IEC 60825
Dimensions	13.7 × 56.5 × 8.95 mm
Compatibility	Selected Cisco, H3C and Huawei devices

Τιμή Μονάδος: 11.90 €
Κατασκευαστής:
Βάρος: 0.100 kg
