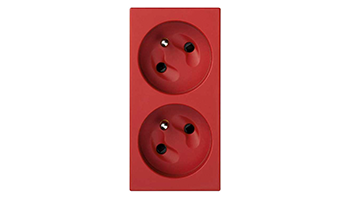

SIMON 50000468-037 French double socket outlet 16A 250V~ with safety device and 1Click® terminal connection red Simon 500 Cima



SERIES: Simon 500 Cima

INTENSITY: 16 A

FORMAT: French

TYPE OF TERMINAL CONNECTION: 1 click connection (1 click®)

FINISH: Red



Product description



Double French socket outlet with safety device and 1Click ® terminal connection, finished in graphite colour and belonging to the Simon 500 Cima series. It works with a voltage of 250V and current of 16 A and is a socket outlet suitable both for surface and flush mounting. This socket outlet supports a cable section of 1.5 to 2.5 mm and does not require wire stripping. It works in places with temperatures of -25... 60 °C, although it can withstand extreme temperatures. Manufactured with metal components with self-extinguishing, halogen-free thermoplastic insulation, which are materials that guarantees no flame spread (in case of fire) and low toxicity (in the event of smoke). Also, it complies with regulations UNE-EN 60998-2-3 + NF C-61314:2008 + A1:2010. It measures 100 x 50 mm, with a depth of 46 mm, and can be cleaned with just a soft, dry cloth.



Weight 0.2 Kgr
