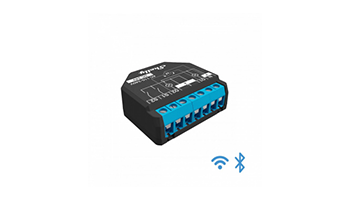

Shelly Shelly Plus 2PM 2-channel smart Wi-Fi relay with consumption monitoring and blind control



The Shelly Plus 2PM is a two-channel single-phase logic relay that supports up to 10A per channel and 16A total current (18A peak value). It features per-channel metering and an overload protection function to limit power consumption. "Shutter" control allows control and monitoring of roller shutters, blinds, shades, gates or other bi-directional AC motors.



One device - several options

2-channel logic relay: Automates the lights and monitors their energy consumption in real time



Cover Control (Roller)

Automates and controls the current position of roller blinds, curtains, garage doors, awnings, gates, electric sliding doors, pool covers, bi-directional AC motors.



The Shelly Plus 2PM is an ideal option for automating awnings, roller blinds, garage doors, awnings, gates and any other two-way motor in your home. Use the Schedules feature to create the perfect morning/evening routine by setting Shelly Plus 2PM to open/close your home's curtains at specific times each day. In addition, the precise position control allows you to set the desired intermediate position of the blinds in percentage (%).



Endless applications

Control two lights with 1 device: Shelly Plus 2PM allows you to control two different circuits and monitor their consumption separately. In this way, you can control two different lights on the same stage with one device, saving additional energy and reducing overall wiring dimensions.



Monitor your energy consumption and save energy: Now you can monitor and analyze the energy consumed by your appliances and manage your consumption. Shelly Plus 2PM has two precise built-in power meters that allow monitoring consumption for each channel separately. The consumption data is stored free of charge and helps you predict your costs and allows every home owner to reduce their electricity costs.



Combine Shelly Plus 2PM with other home automation devices: Shelly, can be grouped with other devices and activated to perform actions based on preset conditions. Nowadays, many people prefer to work from their home office. Install the SHELLY DOOR / WINDOW 2 sensor on your home office door and set the Shelly Plus 2PM to open the blinds as soon as you enter the room in the morning, letting in natural light. Once the work day is over, Shelly Plus 2PM will close the blinds and keep them that way until you are ready for the next work day.

Script functionality

Shelly Plus 2PM offers scripting capabilities - use them to customize and improve device functionality according to your specific needs or automation project. Example: Together with a wind sensor or simply using a script, the Shelly Plus 2PM can close your awning in strong winds to prevent it from breaking. Use your favorite voice assistant to control Shelly Plus 2PM.



Shelly Plus 2PM is compatible with Amazon Alexa, Home Assistant, Smart Things and other home automation platforms. Third-party Shelly Plus devices can also be grouped with all Shelly devices as well as other smart home devices on the home network.



Functionality:



Wi-Fi, connect Shelly Plus 2PM to your Wi-Fi network. No HUB required.

Bluetooth. Add devices quickly and easily via Bluetooth connection using the Shelly Cloud app.

Ultra-fast processor, For immediate execution of commands and notification (ESP32).

Controls the bi-directional AC motors and sets the desired position.

Increased safety, improved overheating protection with software thresholds to control and prevent damage.

Measures power with data storage. Two precise integrated power meters allow you to monitor consumption for each channel.

Wide range of voltage support, can be powered from 110-240V AC and 24V DC and supports up to 10A per channel and 16A in total.

Improved API, wide range of cloud connections and on-premises integrations with much lower integration costs.

Specifications



AC power supply: 110-240V ± 10%, 50 / 60Hz

DC power supply: 24 V ± 10%

2 channels

Maximum load per channel: 10A

Maximum total device current: 16A (18A peak)

Maximum switching voltage: 240V AC / 30V DC

Wi-Fi 802.11b g/n

Radio frequency: 2400 - 2500 MHz

Overload protection

Power measurement

Overheating protection

Radio signal strength: 1mW

Working range: up to 50 m outdoors and up to 30 m indoors (depending on building materials)

Operating temperature: -20 °C to + 40 °C

Dimensions: 42mm x 38mm x 17mm
