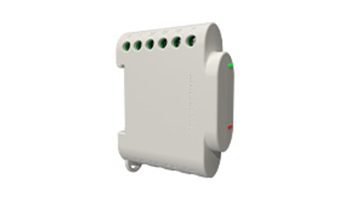

Shelly 3EM PROFESSIONAL 3 PHASE ENERGY METER



What is Shelly 3EM?

The professional 3-phase energy meter

Shelly 3EM can calculate 2-way consumption: produced and used energy for each of the three phases. The device can be configured to measure three separate points of a mono-phase electrical system and measure each of them separately.



Features

No HUB required.

Wide range of voltage support.

Anti energy theft protection

Overconsumption and over energy protection

It can be integrated to work with all other Shelly devices.

Compatible with Android, iOS, Amazon Alexa, Google Assistant, and home automation servers using MQTT, CoAP, and REST API.

Easily make your Arduino project live and usable in your automation project.



Shelly 3EM is a three-phase electricity meter. Offers contactor control up to 10A and is compatible with solar and wind power systems. Current transformers are included in the kit and are factory calibrated with 99% accuracy. Complete consumption history for 365 days back. Power supply: 110-230V, 50/60Hz AC

Measurement: 3 channels - up to 120A each. Contactor load: 10A

WiFi: 802.11 b/g/n (2.4GHz), Consumption: <1W, Operating temperature: -20°C ÷ 40°C,

Dimensions: 73x22x58 mm. For DIN rail mounting.
