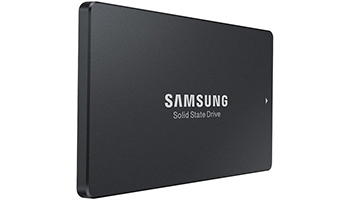

SAMSUNG MZ7LH960HAJR-00005 PM883 960GB Data Center SSD, 2.5'' 7mm, SATA 6Gb/s, Read/Write: 550/520 MB/s, Random Read/Write IOPS 98K/28K
Disk configuration
Device Location Internal
Form factor 2.5"
Data storage device capacity 960 GB
SATA III-600 data channel supported
External data transfer rate supported 6 Gbps
NAND Flash memory technology
Productivity
Maximum Random Read Rate 98000 IOPS
Maximum Random Write Rate 25000 IOPS
Maximum Sequential Read Rate 550 MB/s
Maximum Sequential Write Rate 520 MB/s
Total Bytes Written (TBW) 1366 TB
Drive Writes Per Day (DWPD) 1.3
Supported interfaces
SATA III Interface Quantity 1
Reliability
Unrecoverable errors 1 per 10^17
Mean time between failures 2000000 hrs.
Solid State Drive Features TRIM Support
NCQ
AES 256-bit Encryption
Shock resistance when working 1500G @ 0.5ms
Operating vibration tolerance 20G
Energy consumed
Nominal supply voltage 5 V
Maximum power consumption 3.1 W
Minimum energy consumption 1.3 W
Terms of use
Maximum ambient temperature 70 °C
Minimum ambient temperature 0 °C
Max. ambient air humidity 95 %
Min. working air humidity 5 %
Max. ambient temperature in off mode 85 °C
Min. non-operating ambient temperature -40 °C
Dimensions & weight
Depth 100.2 mm
Height 6.8 mm
Width 69.85 mm
Nominal weight 0.07 kg
Warranty
Warranty products - subject to return Yes
Warranty Validity Criteria Serial Number
Logistics information
Package Weight - Gross (kg) 0.02 kg
Package Weight - Net (kg) 0.02 kg
Quantity per pack 1
Carton weight - Gross (kg) 0.02 kg
Retail Packaging Net Weight Carton 0.02 kg
Retail Packaging Net Weight Plastic 0.02 kg
Packages in Carton 1
OEM package type
EAN code 4260580370931
