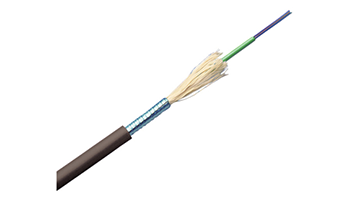

R&M R314557 Stranded Loose Tube Cable A-DF(ZN)2YW2Y, G.652.D, 2x12-fibers



The solution for installations directly in the ground in difficult environments. The cable features an inner and an outer PE sheath. The cavities between the stranded gel-filled loose tubes are filled with gel, also ensuring water tightness. Underneath the outer sheath the cable is surrounded by an 0.155 mm corrugated steel armor (ECCS).



Cable overall diameter 14.5 mm

Stranding 2 x 12 pairs

Fiber diameter E9 / 125 µm

Standard put-up length on drum 2100 m ± 5%

Cable length 2000.0 m
