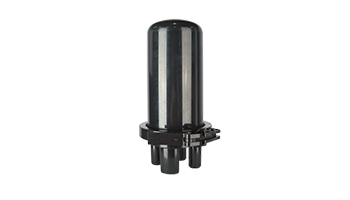

NIKOMAX NMF-SC-4V-48-4HS Splice Closure, 48 fibers, 3 round & 1 oval port, with 4 pcs. of splice tray, with standard accessories, thermo-sealing, shortened



Optical splice closure NMF-SC-4V-48-4HS is designed to be fixed on the supports of overhead cable lines, walls of buildings and structures. It is advantageous to use small capacitance couplings in places of broaching peripheral communication lines and in places of branches of peripheral lines to subscriber lines. Recommended for places with high humidity and high content of dust in the air.



The “hot” method of assembling and sealing cable glands with heat shrinkable tubing increases the strength of the cable fixation system, the anti-vandal resistance of the coupling and ensures absolute isolation from dust and moisture. The body is made of impact-resistant frost-resistant polycarbonate.



NIKOMAX Optical socket 48 fibers, cylindrical with 3 round holes and 1 oval for cables up to 4 x 20 mm / 1 x 40 mm in diameter; shock and frost resistant polycarbonate body; heat-shrinkable tubes for cables for stronger fixation; 4 splice cassettes; degree of protection IP68; dimensions 288 x Ø178 mm; weight 1.6 kg; operating temperature - 50C to + 70C;



weight 1.6 kg
