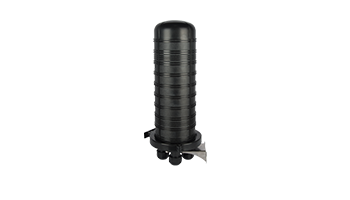

NIKOMAX NMF-SC-1V-48-4MS Splice Closure, 48 fibers, 4 round ports, with 4pcs. of splice tray, with standard accessories, mechanical sealing



Optical splice closure NMF-SC-1V-48-4MS is designed to be placed on cable and railway contact network supports, walls of buildings and structures. The possibility of branching and branching of passing trunk lines, including without opening some modules, has been implemented.



The cable entries are sealed with three gaskets of various materials and sealing tape, then tightened with a special nut. This solution provides moisture and dust insulation of cable entries.



The body of the splice closure is made of impact-resistant frost-resistant polycarbonate and a special sealing system provides long-term and reliable protection of splices. They are distinguished by a reinforced casing and the presence of special hinges on the cover for mounting on the suspension in a horizontal position.



NIKOMAX Optical socket 48 fibers, cylindrical with 4 round holes for cables up to 13 mm in diameter; shock and frost resistant polycarbonate body; 4 splice cassettes; metal bracket for fixing in a horizontal position; degree of protection IP65; dimensions 415 x Ø157 mm; weight 2.2 kg; operating temperature - 50C to + 70C;



Weight 2.2 kg
