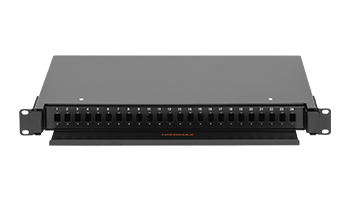

NIKOMAX NMF-RP24SC-TS-P-1U-BK Fiber Distribution Unit 19', 1U, for 24 Simplex SC adapters or 48 Simplex LC adapters, sliding type, with shelf, black



Rack Mount Fiber Distribution Unit (FDU) are designed for switching optical fibers, in particular to create a detachable connection between optical cords connected to active equipment and terminated with fiber optic cables. Optical cables are built into the FDU and terminated with the necessary connectors by welding with pigtails. To protect the joints and lay the stocks of fiber lengths, special splice cassettes and heat shrink sleeves are used. The connection of the terminated cable to the patch cords takes place through the optical pass-through adapters, which are installed in the removable panels on the front part of the FDU. Rack Mount Fiber Distribution Unit (FDU) NMF-RP24SC-TS-P-1U-BK is designed for mounting in a switching 19 ”cabinet or rack. FDU body is made of steel and reliably protects fibers from external mechanical impact and foreign objects getting inside. FDU has 4 cable entries on the rear wall and, accordingly, 4 nodes for mounting cable. A feature of this FDU is a retractable design that provides easy access to the contents of the FDU. There is also a front shelf and inside the FDU for convenience, the organizer is located.





NIKOMAX Optical patch panel 19 ”1U for 24 Simplex SC / 48 Duplex LC adapters; pull-out, with 2 cable organizers; front shelf; 2 splice cassettes; 4 rear cable entries up to 12 mm cable; steel material 1.2 mm; black; grounding cable; operating temperature -20 to + 65 ° C; dimensions 482 x 250 x 44 mm;



Weight 2 Kgr
