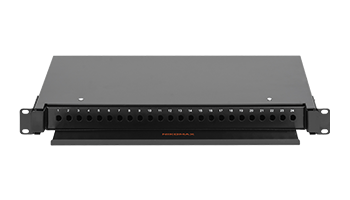

NIKOMAX NMF-RP24FC-TS-P-1U-BK Fiber Distribution Unit 19', 1U, for 24 FC / ST adapters, sliding type, with shelf



Rack Mount Fiber Distribution Unit (FDU) are designed for switching optical fibers, in particular to create a detachable connection between optical cords connected to active equipment and terminated with fiber optic cables. Optical cables are built into the cross and terminated with the necessary connectors by welding with pigtails. To protect the joints and lay the stocks of fiber lengths, special splice cassettes and heat shrink sleeves are used. The connection of the terminated cable to the patch cords takes place through the optical pass-through adapters, which are installed in the removable panels on the front part of the FDU. Rack Mount Fiber Distribution Unit (FDU) NMF-RP24FC-TS-P-1U-BK is designed for mounting in a switching 19 ”cabinet or rack. Cross-body is made of steel and reliably protects fibers from external mechanical impact and foreign objects getting inside. Cross has 4 cable entries on the rear wall and, accordingly, 4 nodes for mounting cable. A feature of this cross is a retractable design that provides easy access to the contents of the cross. There is also a front front shelf and inside the cross for convenience, the organizer is located.



NIKOMAX Optical patch panel 19 ”1U for 24 FC / ST adapters; pull-out, with 2 cable organizers; front shelf; 2 splice cassettes; 4 rear cable entries up to 12 mm cable; steel material 1.2 mm; black; grounding cable; operating temperature -20 to + 65 ° C; dimensions 482 x 250 x 44 mm;



Weight 2 Kgr
