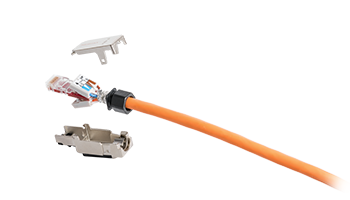

NIKOMAX NMC-RJ88SA2-NT-MT CAT6A FTP terminable plug



RJ45/8P8C plugs are designed for termination of solid (single-core) and stranded (patch cord) cables in production of patch cords and in some cases while laying communication lines, for connecting CCTV cameras, etc. NIKOMAX Self-clamping Field Toolless Plugs are designed specifically for use with high-speed cables and provide first-class transmission characteristics. Connectors can be used to stack server hardware, workstations, connect various specialized industrial equipment and CCTV cameras. NMC-RJ88SA2-NT-MT (Cat.6A) connector is made in cast, fully shielded zinc-aluminum alloy housings. They consist of a central insert with RJ45 plug and PCB with IDC, the body divided into two halves and a plastic shank for cable fixation. The cable shield is earthed to the spring-loaded contact in the rear of the housing, providing full electrical contact and further clamped by the shank to securely fix the cable behind the sheath. The supported thickness of the outer shell is 6-8 mm. Connectors design makes it easy to plug the cables without any specialized tools. Only diagonal cutters are needed to gently bite off excess wires. Supplied individually, in an individual polyethylene bag with perforation – similar to switching modules.



RJ45 / 8P8C connector for cable FTP Cat.6a 500 MHz, for cable size 23 ~ 24AWG, zinc-aluminum alloy housing, gold-plated 120 um pins. For cable with a diameter of 6-8 mm; Operating temperature -20o ~ 60oC. Standards ISO / IEC 11801, EN 50173.



Weight 0.022 Kgr/pcs. , 70pcs/ 1,64Kgr, 280pcs/8.6Kgr
