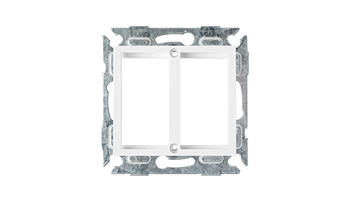

NIKOMAX NMC-PV2MH-WW Inner frame of Valena faceplate



The faceplates are designed for inserting keystone modules to organize information ports at the workplace.



NMC-PV2MH-WW faceplate allows you to install two standard Mosaic inserts 45x22.5 mm. It is possible to mount any solutions based on keystone modules or compatible with the Mosaic format. The mounting frame is made of steel and compatible with a standard socket outlet. The distance between the mounting holes and the screws is 60 mm. Use the original bezel.



NIKOMAX Internal frame for Valena mechanisms - single, white. Bright hole for Mosaic mechanism 45x45 mm. Sturdy non-flammable plastic UL94V-0. Distance between screws 60 mm. Dimensions 72x72x12 mm. Operating temperature -10 ~ 60 ° C.



Weight 0.010 Kgr
