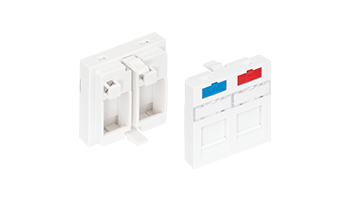

NIKOMAX NMC-PM2P-PF-WT Mosaic format insert, 45x45 mm



For the organization of information ports in the workplace with the help of boxes, columns and internal sockets, a wide range of inserts of the French standard Mosaic 22.5x45 mm and 45x45 mm are used. The inserts are xed in the front panels with the help of convenient latches and, if necessary, are easily dismantled. Depending on the model, 1 or 2 Keystone modules of any type are installed in the insert. The inserts are provided with a curtain to protect the socket from dust when the patch cord is disconnected. Complete with inserts is a set of colored icons. In addition, there are additional areas for marking, closed with removable transparent covers.



NIKOMAX Double insert Mosaic 45x45 mm for two jacks. Flat. Dust cover. Colored plastic marking icons. Place for inscription with transparent cover. Sturdy non-flammable plastic UL94V-0. Dimensions 45x45x18.5 mm. Operating temperature -10 to +60 ° C



Weight 0.016 Kgr/pcs., 100 pcs. 1.8 Kgr, 400 pcs. 8.2 Kgr
