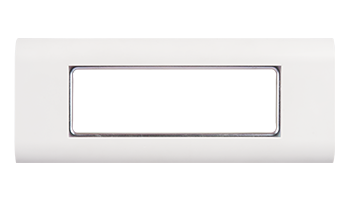

NIKOMAX NMC-PL3PM-WT Wall-mounted faceplate for 3 inset, Mosaic, 45x45 mm



NIKOMAX Wall-mounted faceplates are designed to install inserts for modules such as Keystone to organize information ports in the workplace, as well as to install other mechanisms compatible with the French standard Mosaic (45x45 mm). The front panels NMC-PL1PM-WT, NMC-PL2PM-WT and NMC-PL3PM-WT hold 1, 2 or 3 inserts of Mosaic format 45x45 mm, respectively. At the base of the panels there are metal subframes for mounting on the mounting boxes and coasters with an interaxial distance between the screws of 60 mm. The outreach of the front frame with respect to the subframe can be adjusted within up to 3 millimeters.



NIKOMAX Wall socket for Mosaic mechanisms - triple, white. Bright hole for Mosaic mechanisms 45x45 mm. Sturdy non-flammable plastic UL94V-0. Set of metal frame and decorative frame. Distance between screws 60 mm. Dimensions 240x80x8 mm. Operating temperature -10 ~ 60 ° C.



Weight 0.105 Kgr/pcs., 20 pcs. 2.4 Kgr, 80 pcs. 9.9 Kgr
