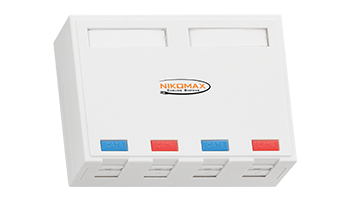

NIKOMAX NMC-MB4P-ST-WT Surface mount box, 4 ports



Surface mount box are an integral part of the horizontal subsystems of SCS and are intended for connection of terminal equipment in workplaces. Structurally, the sockets can be made in two versions: as a complete solution with soldered RJ45 ports and IDC connectors and in the form of a plastic casing into which Keystone plug-in modules are separately installed. The advantage of simple, empty enclosures is that not only RJ45 modules can be installed there, but also any others compatible with the Keystone format, incl. Telephone, optical and coaxial, in any desired configuration. NIKOMAX Surface mount box- a simple and convenient solution for network installation. The assortment has 4 convenient models for 1, 2, 4 and 6 ports. Each data port of the outlets is equipped with an individual cover, which protects the contacts from the settling of dust. On the housings there are additional breakable windows allowing cables to be brought from either side. For ease of administration on all covers there are areas for marking and for installing color icons.



NIKOMAX Surface mount socket for four jacks. Compatible with all NIKOMAX jacks. Dust cover. Place for a label. Service openings with breakage for the cable on each side. Possibility of wall mounting. Sturdy non-flammable plastic UL94V-0. Dimensions 118x85x30 mm. Operating temperature -10 ~ 60 ° C.



Weight 0.076 Kgr/pcs., 20 pcs. 1.8 Kgr, 80 pcs. 7.9 Kgr
